VMC1055 High Quality Cnc Vertical Machining Center
RTS High Quality Cnc Vertical Machining Center VMC1055 High Professional Metal Processing Milling Machining Center

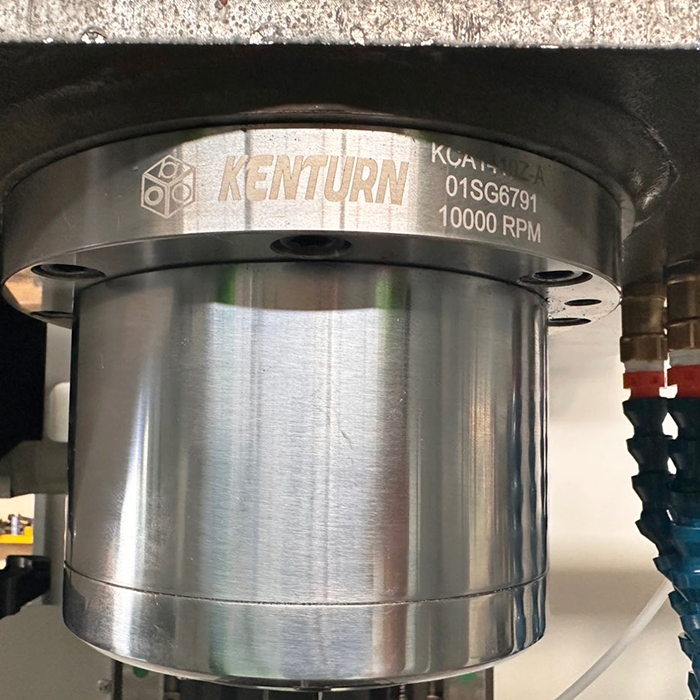

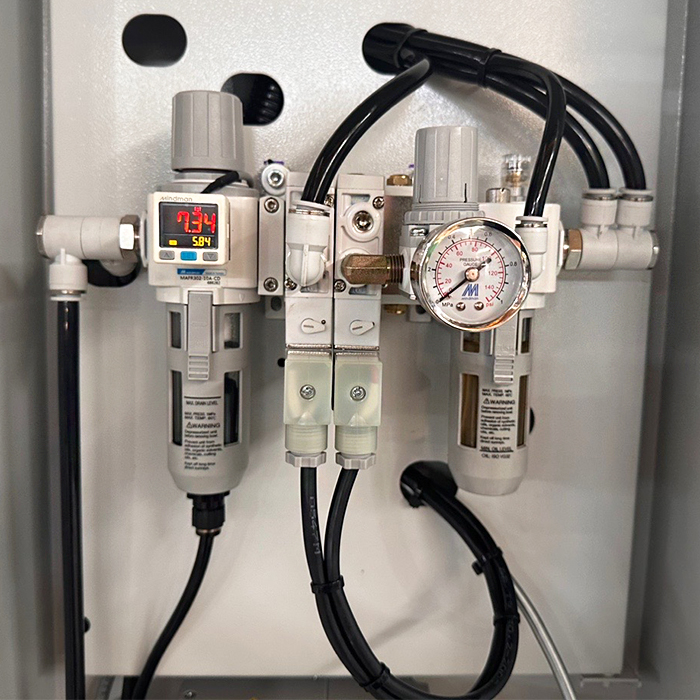

CNC vertical machine center vmc cnc milling machining center with high quality for metal work DRC machining center is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes. Cnc 5 Axis Metal Milling Machine 1.Taiwan Keturn brand spindle with 10,000 rpm, with oil cooler has been upgraded from Volis brand 8000 rpm. 2.Japanese original NSK bearings updated from NSK bearings made in China, with more durable and have a longer life. 3. Z-axis 45mm width with 3 sliders is upgraded from 35mm with 2 sliders, stronger and more stable processing rigidity. 4. 8 anchor bolts has been upgraded from 6 , which increases the stability of the equipment. 5. Update to digital display function pneumatic system and is controlled by CNC system. 6. Computer-controlled Taiwan Sunshine brand oil injection is upgraded from manual to avoid the risk of manual misoperation. 7. Modularized electrical cabinet is upgraded from the relays , which is smarter and more convenient. 8. Taiwanese brands water guns and air guns are upgraded from domestic brand as shown in the picture.
|
Specification |
Unit |
VMC855 |
VMC1055 |
|
Processing range |
|||
|
X axis travel |
mm |
800 |
1000 |
|
Yaxis travel |
mm |
550 |
550 |
|
Zaxis travel |
mm |
550 |
550 |
|
Spindle face to table distance |
mm |
120-670 |
120-670 |
|
Distance between spindle center |
|||
|
and column guide surface |
mm |
613 |
613 |
|
Worktable parameters |
|||
|
Worktable size (X) |
mm |
1000 |
1000 |
|
Worktable size (Y) |
mm |
550 |
550 |
|
Maximum load bearing of worktable |
kg |
550 |
550 |
|
Spindle parameters |
|||
|
Spindle speed |
rpm |
10000/12000 |
10000/12000 |
|
Feeding parameters |
|||
|
X/Y/Z axis rapid movement rate |
m/min |
36/36/36 |
36/36/36 |
|
Feed moving velocity X,Y,Z |
mm/min |
1-10000 |
1-10000 |
|
Servo motor specification |
kw |
3*3*3 |
3*3*3 |
|
ATC paremeters |
|||
|
ATC capacity |
pcs |
Knife wall type 24 |
Knife wall type 24 |
|
Machine size |
|||
|
Length of machine |
mm |
2400 |
2400 |
|
Width of machine |
mm |
2050 |
2050 |
|
Height of machine |
mm |
2250 |
2250 |
|
Weight of machine |
kg |
4060 |
4060 |
