HME63D Heavy Metal CNC Horizontal Boring Machine Center
Horizontal Machining Center Features:

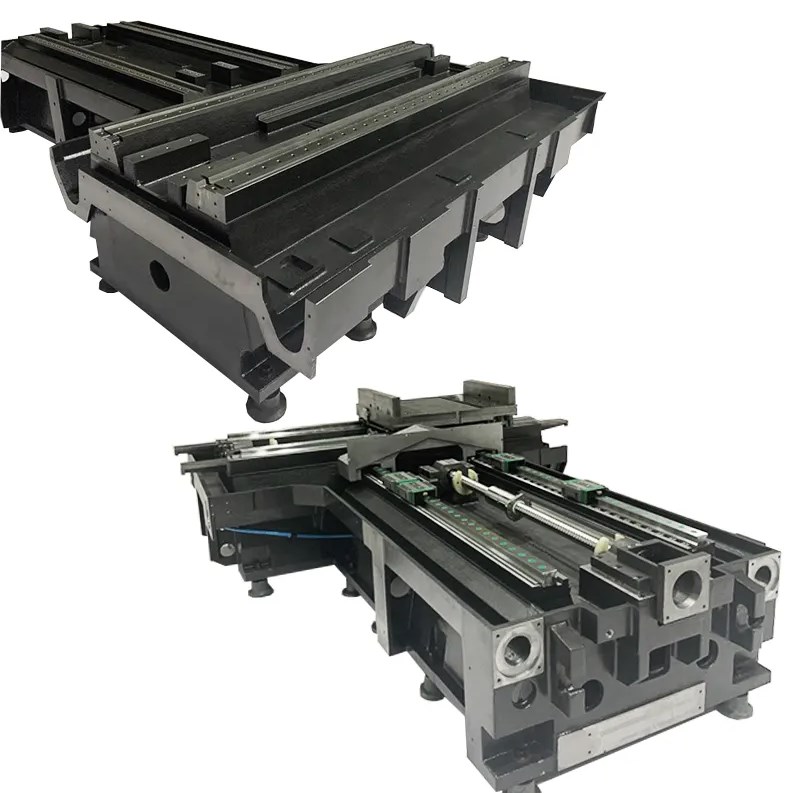

Base structure: One-piece molding, hollow multi-rib high-rigidity structure design for super-rigid base material

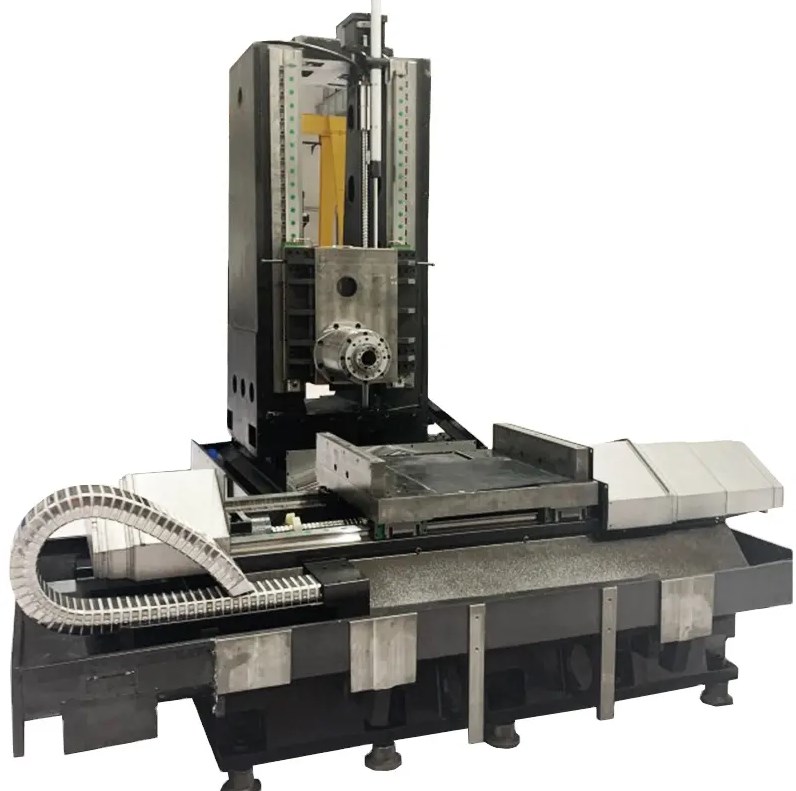

Column structure: hollow double-layer box structure, the left and right lining design belongs to the rapid heat rejection structure, which can achieve excellent rigidity and excellent precision performance
Spindle box structure: The spindle box adopts a one-piece casting structure to meet the rigidity of the spindle for a long time to ensure accuracy

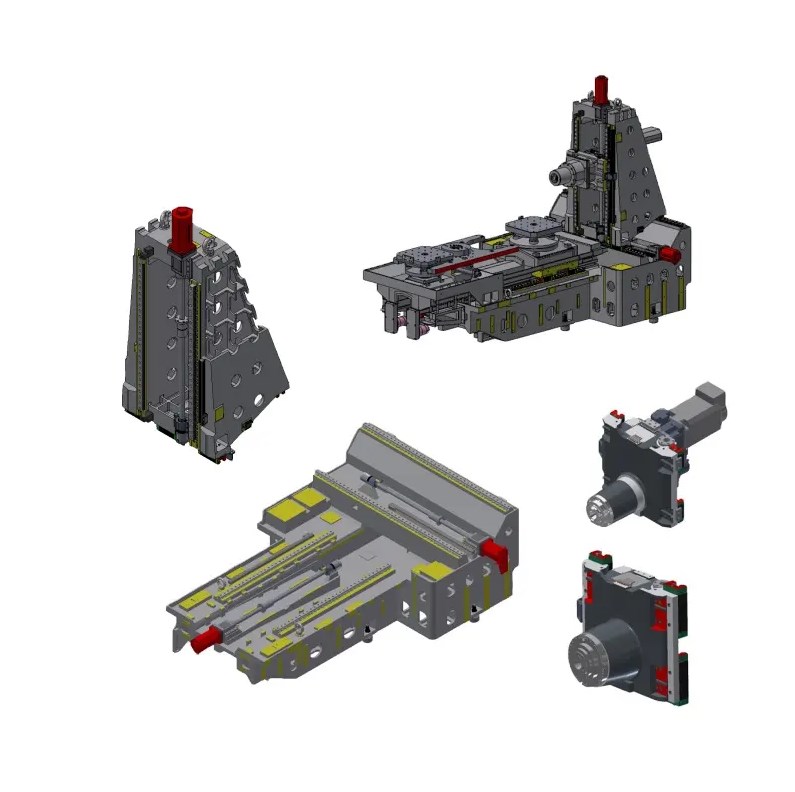

Horizontal Machining Center CNC Column structure:
The column adopts high and low stage structure design and processing, the spindle is closer to the guide rail to improve the rigid structure
Workbench
1. Standard rotary table, reinforced structural rotary table with strong bearing capacity.
2. The B-direction worktable adopts automatic hydraulic locking, and the powerful clamping mechanism can meet the powerful cutting conditions.

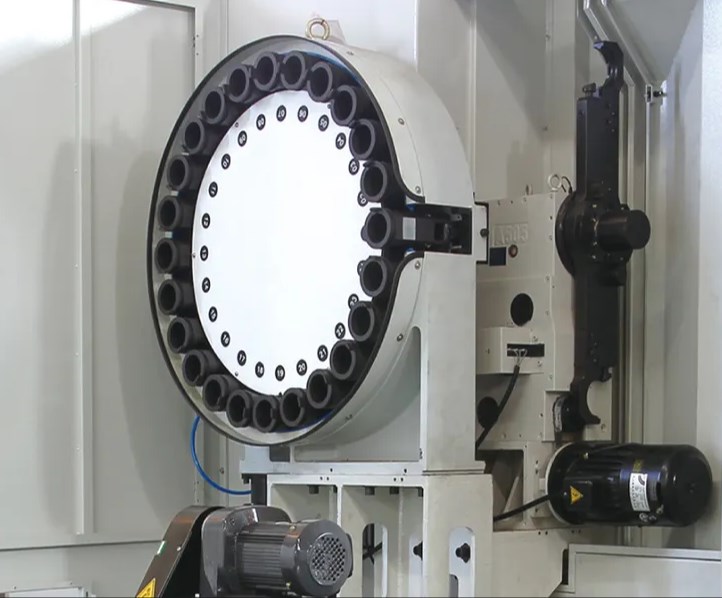

| HME63D High Rigidity Heavy Duty Cnc Horizonta Milling Machining Machine Center | ||
| Model | Unit | HME63D |
| Worktable | ||
| Table size | mm | 630*630 |
| Division angle | deg | 1° |
| Max. load on worktable | kg | 800 |
| Number of worktable | pcs | 2 |
| Velocity of indexing | r/min | 10 |
| Positioning accuracy of rotary table | arc-sec | ±5 |
| Repeated Positioning accuracy of rotary table | arc-sec | ±2 |
| Processing range | ||
| Travel for X/Y/Z axis | mm | 1000*770*900 |
| Spindle nose to worktable center | mm | 175-1075 |
| Distance from spindle center line to worktable | mm | 110-880 |
| Maximum rotating diameter | mm | 1400 |
| Spindle | ||
| Spindle taper | BT50 | |
| Type of drawing nail | P50T-1-MAS403(45) | |
| Spindle speed | rpm/min | 6000 |
| Spindle motor | kw | 15/18.5 |
| System configuration | ||
| X direction motor | βis22 | |
| Y direction motor | βis30B | |
| Z direction motor | βis30 | |
| B direction motor | βis22 | |
| Spindle motor | βisIP30 | |
| Drive feed | ||
| Fast feed speed（X/Y/Z） | m/min | 20/20/20 |
| Fast feed speed（B） | r/min | 7 |
| Tool magazine | ||
| Capacity of tool magazine | T | 24 |
| Max. tool diameter | mm | 105 |
| Max. tool length | mm | 300 |
| Max. tool weight | kg | 15 |
| Tool change time | sec | 3.8 |
| Precision | ||
| Positioning accuracy | mm | 0.01 |
| Repeated Positioning accuracy | mm | 0.006 |
| Air pressure | ||
| Air supply pressure | bar | 6月8日 |
| Air pressure flux | L/min | 280 |
| Others | ||
| Voltage | kva | 35 |
| Floor area | mm | 4200*6600*3550 |
| (length*width*height) | ||
| Weight | kg | 15000 |
