High Quality Metal TCK36A Turning Center Cnc Lathe Machine
Product Description
High Rigidity Slant Bed Cnc Lathe TCK36A Turning Lathe Machine With Linear Guideway

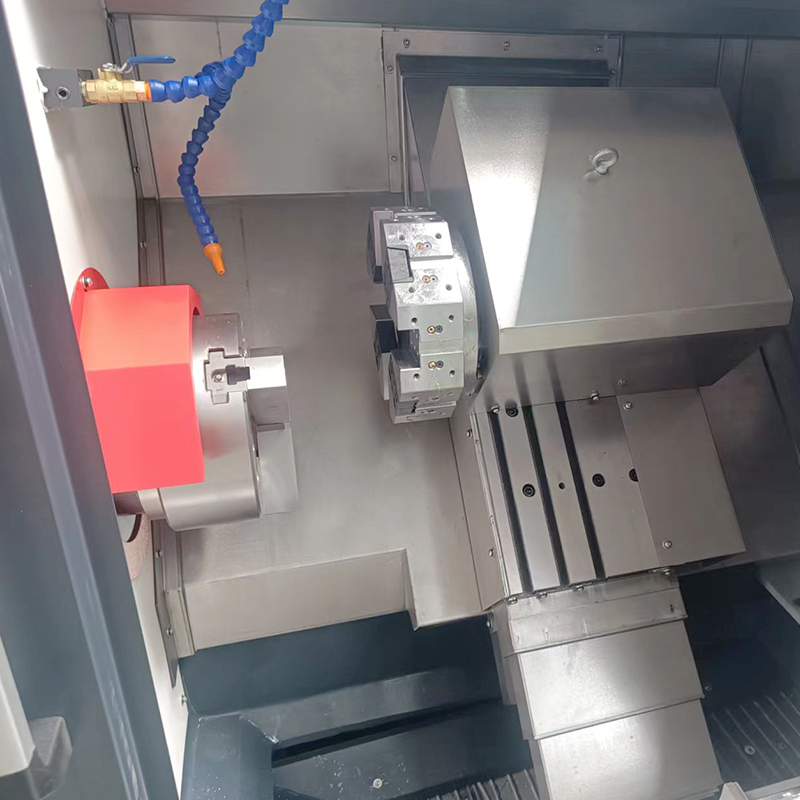

CNC Lathe Machine Features: 1.45 degrees slant bed CNC lathe; 2.Higher accuracy Taiwan linear guideways; 3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the right or in the back; 4.Spindle unit has two types, the heavy cutting type and the high speed type. The first one is suitable for bearing and gear processing. The second type is suitable for high speed and high precision.Customers could choose any type of them; 5.Screw pre-stretching structure; 6.Gang type tool post standard; 7.Optional turret.
Specification
|

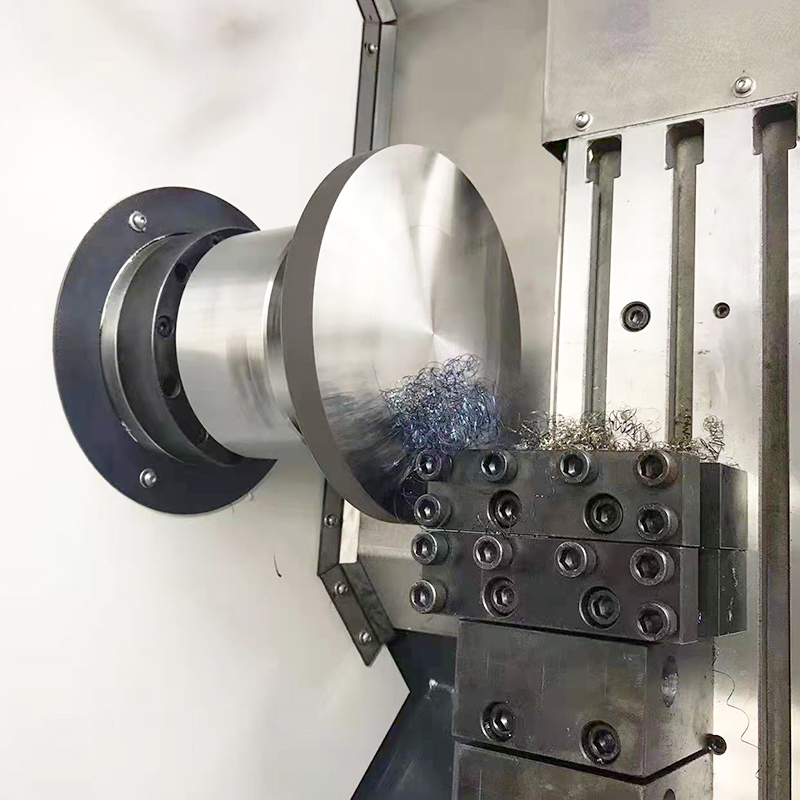

Item |
unit |
parameter |
|
|
TCK36A |
|||
|
Maximum turning diameter on the bed |
mm |
Φ360mm |
|
|
Maximum turning diameter on the slide |
mm |
Φ140mm |
|
|
Distance between centers |
mm |
350 |
|
|
Maximum plate type machining diameter |
Φ360mm |
||
|
Maximum turning length |
mm |
300 |
|
|
Spindle end type |
A2-5 |
||
|
Spindle through hole diameter |
mm |
Φ48 |
|
|
Hydraulic chuck |
mm |
· 6 inch-hollow |
|
|
Hydraulic chuck tube through hole |
mm |
Φ40 |
|
|
Rod diameter |
mm |
Φ40 |
|
|
Guide form |
Linear guide rail |
||
|
Taper of spindle taper hole |
No |
44° |
|
|
Limit spindle speed |
rpm |
3500 |
|
|
Tail seat sleeve diameter |
mm |
Φ65 |
|
|
Taper of inner hole of tailstock sleeve |
No |
4# |
|
|
Tailstock sleeve stroke |
mm |
60 |
|
|
Tailstock form |
hydraulic pressure |
||
|
Servo tool tower |
把 |
8 |
|
|
Cutter dimension |
mm |
20x20 |
|
|
Lead screw type |
X |
mm |
2810 |
|
Z |
mm |
3210 |
|
|
· Guide type |
X |
mm |
MSR30S2SSF1A+R960 |
|
Z |
mm |
MSR30S2SSF1+R630 |
|
|
X/Z motor torque |
N.M |
6/6 |
|
|
X/Z is moving fast |
m/min |
24/24 |
|
|
x-stroke |
mm |
185 |
|
|
z-stroke |
mm |
350 |
|
|
Minimum setting unit |
mm |
0.001 |
|
|
Main motor power |
KW |
5.5 |
|
|
Total power supply |
KW |
9 |
|
|
Net machine weight |
Kg |
About 2400 |
|
|
Overall dimensions (L × W × H) |
mm |
2200x1610x1850 |
|
