High Quality VMC850 Cnc Vertical Machining Center Vmc-850




five axis cnc milling machines VMC 850 hot sell vertical cnc milling machine
CNC vertical machine center vmc cnc milling machining center with high quality for metal work DRC machining center is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes. Vertical machining center fearturs : 1.High quality resin sand 2. Japanese NSK bearing 3. Twaiwan spindle 4. Germany R+W coupling 5. Taiwan ball screw and locking nut 6. Automatic lubrication system 7. Taiwan pressure cylinder 8. Chip conveyor at optional

High Speed 4 axis cnc milling machine VMC850 mini cnc milling machine 5 axis
00:0200:29
Model
VMC850   (GSK25i system)
Travel parameters of 3 axis

X /Y/Z axis travel
800/500/500mm
Spindle face to table distance
150-650mm
X/Y/Z axis AC servo motor
torque N.m 15/15/22
Distance between spindle center and column guide surface
550mm
Worktable parameters

Worktable size
1000×550mm
Maximum load bearing of worktable
600kg
T Shot
5×18×90mm
Feeding parameters

X/Y/Z axis rapid movement rate
24/24/20m/min
Feed moving velocity X, Y, Z
1-10m/min
Spindle parameters

Main shaft connection
Belt
Spindle taper
BT40-140
Range of spindle speed
8000rpm
Spindle motor power
(Alternating current servo)7.5kW
ATC paremeters

ATC capacity
24qty
Maximum tool size
Φ80/Φ150mm(tool from a distance)
Maximum tool weight
8kg
Precision

PositionaI accuracy(JIS standard)
±0.008/300mm
Repeated positioning accuracy(JIS standard)
±0.005mm
Shape and weight

Machine size
2750×2300×2300mm
Weight
5600kg
Main supplier of components

The spindle group/Timing belt pulley
Taiwan Jianchun
Lead screw bearings (class P4)
Germany FAG/ Japan NACHI
Linear guideway
Taiwan Shangyin/Yintai X35mm Y35mm Z35mm

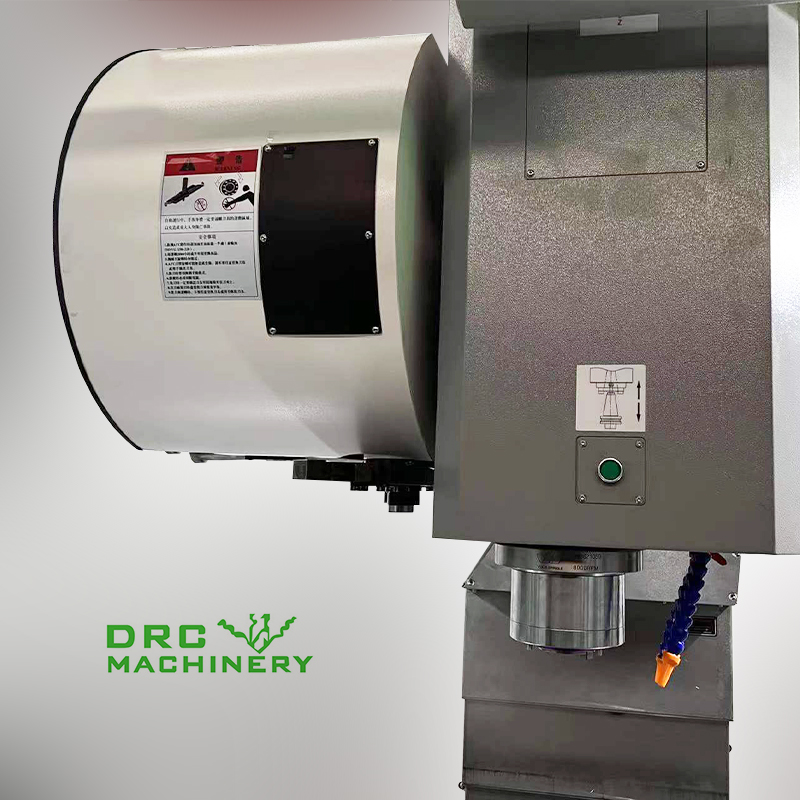

Automatic tool changer
Okada/Dasu, Taiwan
Ball screw F4016(grade C3)
Taiwan Shangyin/Yintai
Lubricant pump
Domestic Hegu / Baoteng
Cooling pump
Domestic Zhehong / Nuoke
Main pneumatic element
Taiwan Airtac
Main electrical components
France Schneider
