CT8 CNC Torno Lathe 4-Axes Universal Turning Center

CNC Torno slant bed cnc turning lathe 4-Axes universal turning center with driven tools and C-axis

 Cnc Torno 3-axis Slant Bed Cnc Turning Center Lathe Machine

CT8 4-Axes universal turning center with driven tools and C-axis

Standard equipment:

1. Main spindle A2-8 with AC motor, drive rating 15/18.5 kW, 4000 rpm

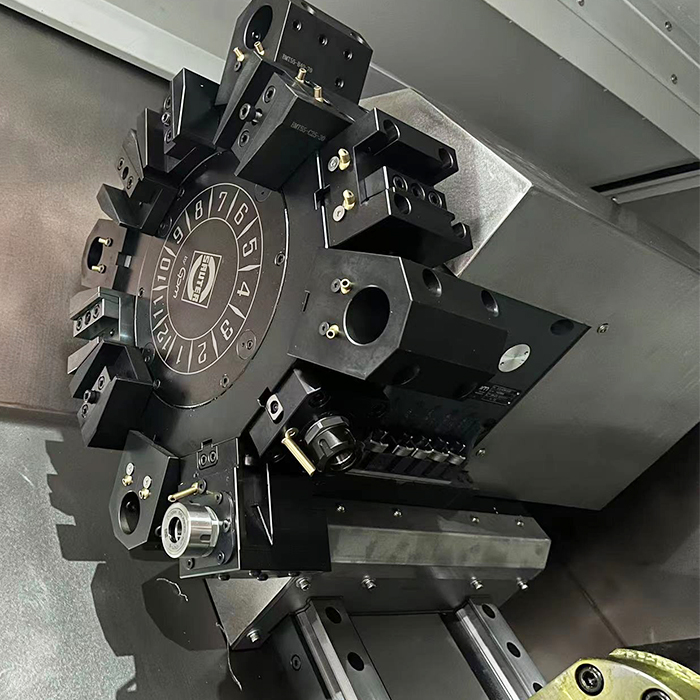

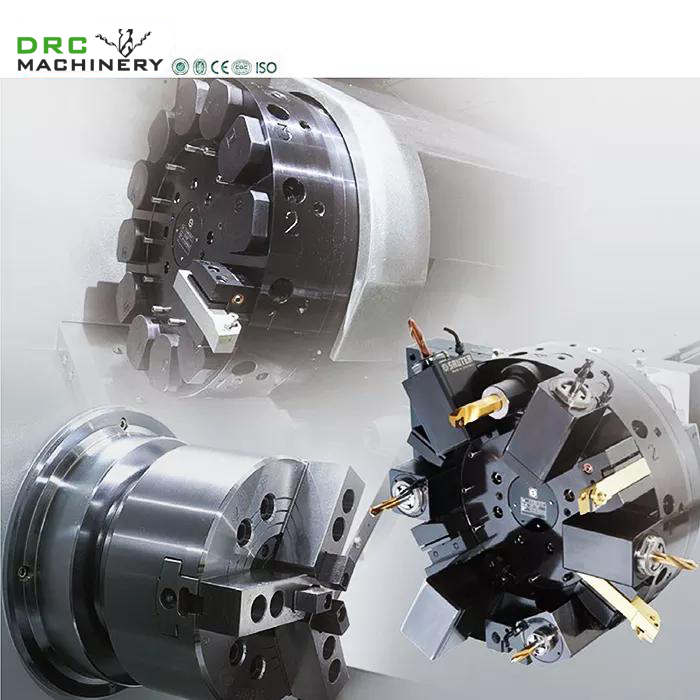

2. 12-stations power turret BMT65 with 12 driven tool stations

3. Chip conveyor and chip tank

4. Hydraulic hollow clamping cylinder, max. bar capacity D65 mm

Full Automatic Universal Turning Center

-Chip conveyor with right side with chip car

-Signal lamp with 3 colours

-Heat exchanger for e-box

-Hydraulic 3-jaw chuck, with set of hard jaws& soft jaws and with connecting elements, through hole D65 mm

-Set of 4 tool holders BMT65 includes: 2x OD tool holder & 2xBoring tool holder D40

-Automatic lubrication system

-Coolant system

-Hydrualic system

-Foot pedal for chuck

2.MACHINE DESCRIPTION & SPECIFICATION

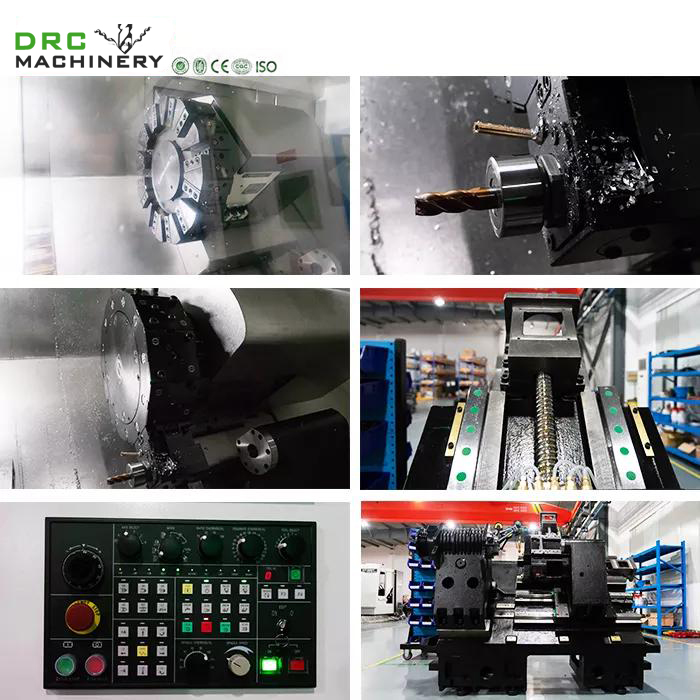

HT5LMY CNC lathe is a four-axis linkage, fully closed-loop CNC machine tool. Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise, high positioning accuracy and repeated positioning accuracy;

the servo motor is equipped with an absolute value encoder, no cumulative error, no memory, No need to find a reference point, the position information will not be lost after the power is cut off.

The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.

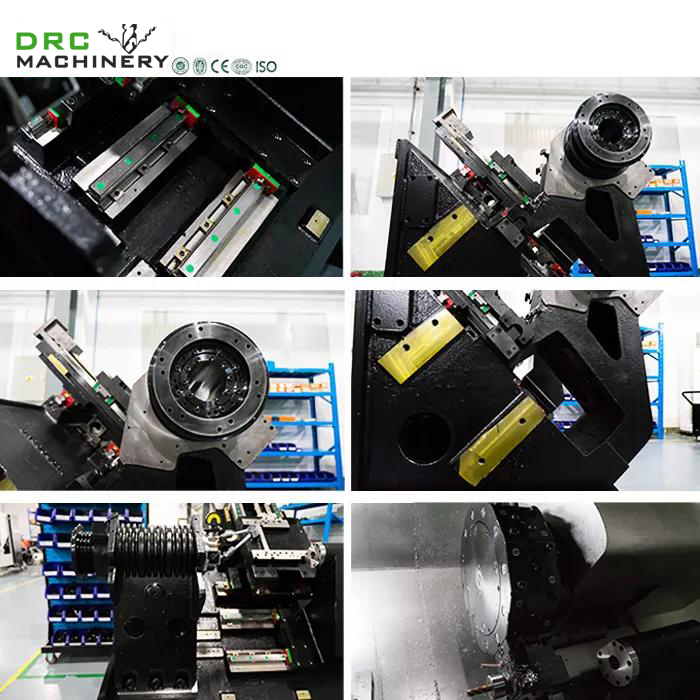

Overall: The machine tool has a mechanical, electrical, and hydraulic integrated layout. The 45° overall slant bed has the advantages of compact structure, high rigidity, smooth chip removal, and convenient operation. The guide rail type is a rolling guide rail, and the driving parts are high-speed silent ball screws.  It has the advantages of fast speed, less heat, and high positioning accuracy; the machine tool is fully enclosed protection, automatic chip removal, automatic lubrication, automatic cooling.

Spindle: The main drive unit of this machine tool is driven by Japanese FANUC 11/15kw high-performance servo motor, which drives the spindle to rotate through a pair of pulleys. The spindle speed range is 30-5000r/min. The front support of the main shaft adopts three-set high-precision angular contact ball bearings, and the rear support adopts two high-precision angular contact ball bearings with large apertures to meet the bearing requirements of axial and radial cutting forces.

Tailstock:The hydraulic cylinder is used to drive the integral mobile tailstock. The structure is simple, with high precision, high rigidity and reliable performance.

Turret: The machine used servo hydraulic turret, with fast tool change speed and high reliability.

Drive:The X-axis and Z-axis driving adopts FANUC high-performance servo motor, with high positioning accuracy and flexible and reliable action.

System: The control system is FANUC 0iTF+, using high-performance AC spindle motor and servo motor
