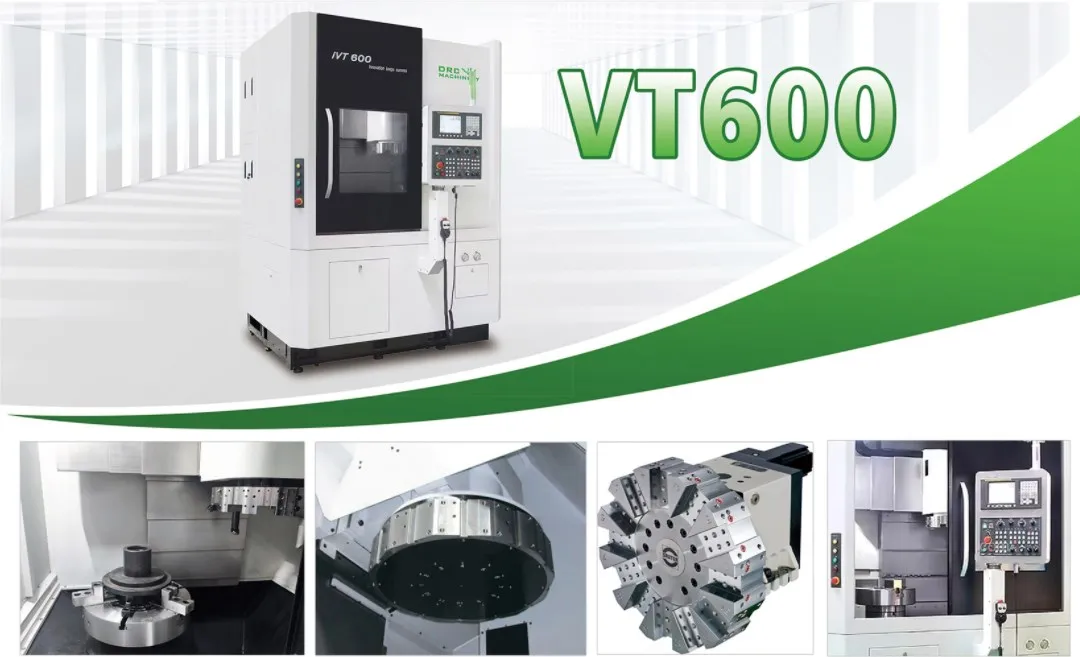

Factory Direct VT600 Cnc Automatic Turning Milling Vertical Metal Lathe Machine The machine tool adopts HT300 high-strength cast iron bed, which has undergone two heat treatments and artificial aging (vibration) to eliminate the residual stress of the casting to the greatest extent. All assembly surfaces between motor bases and castings are precisely adjusted by manual scraping to ensure the overall accuracy of the machine tool. In terms of design, the spindle column adopts a symmetrical box structure, which can provide reliable support for the turret during heavy cutting and reduce high-frequency vibration during milling. It is the structural foundation for high rigidity and high precision of the machine tool. In order to adapt to large diameter and heavy load cutting, the machine tool is equipped with a 15\18.5Kw spindle motor as standard. The maximum turning speed can reach 2500rpm and the maximum torque can reach 440Nm. Taking into account the efficiency and responsiveness of linked milling, and the fact that most turn-milling applications use high-speed, large-depth-of-cut, and high-feed processes, the C-axis supports a maximum feed parameter of 36000°/min (100rpm/min) 440Nm. , to respond to the needs of high-speed milling to the greatest extent. In terms of milling, it is equipped with a 100Nm 5.5kw milling motor with a maximum speed of 3000rpm. This adapts to the milling needs of different materials. The 12-station turret equipped with BMT65 as standard has been verified by the design structure to ensure that there are no dead ends in the positive and negative tool installation angles. And the servo motor tool changing solution maximizes the execution efficiency of the turret and the repeated positioning accuracy of the tool, so that the tool changing time basically does not need to be considered when designing the process plan. Considering green production and employee health, the machine tool adopts a fully enclosed sheet metal design and can be equipped with an optional oil mist collector to reduce the generation and spread of smoke, harmful particles, and aerosols.
