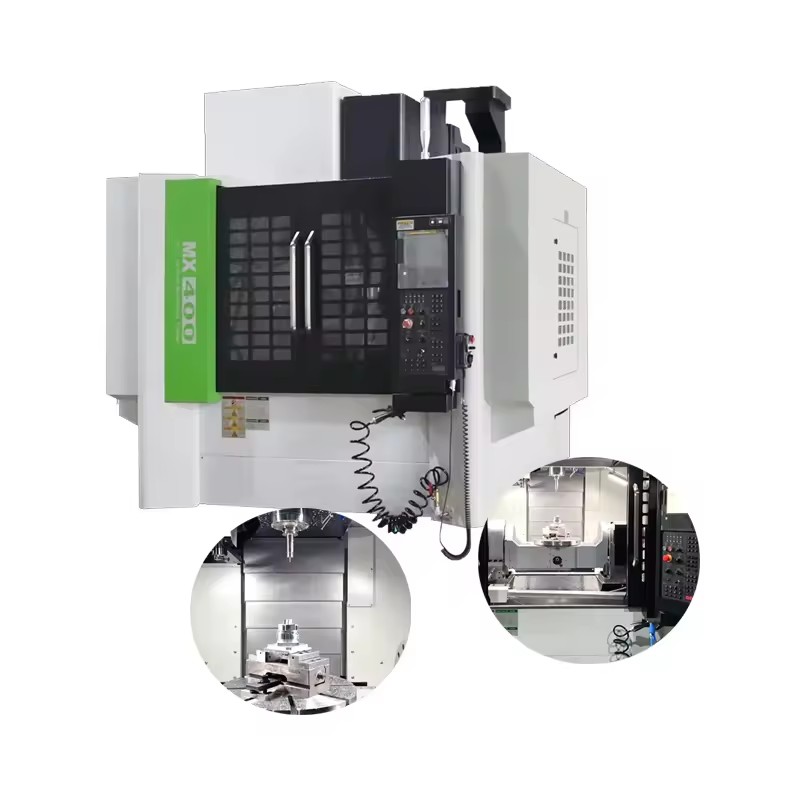

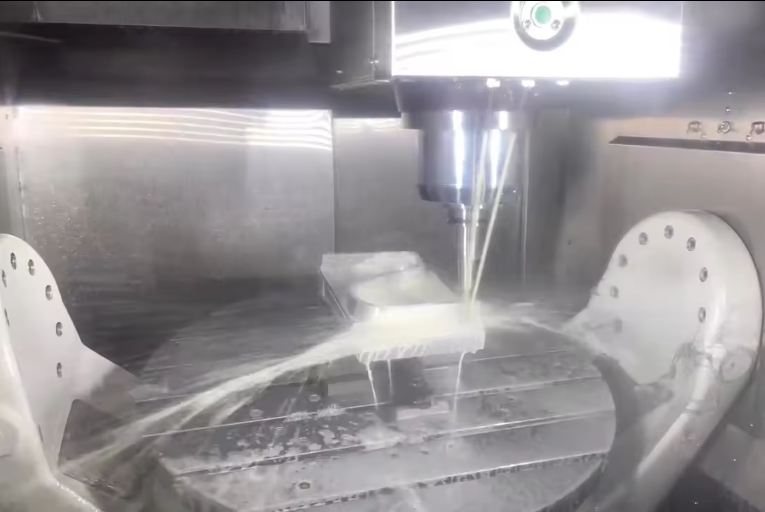

High Precision 5 Axis Metal Milling Machine Mx400 Ultrasonic Cnc Vertical Machining Center
High Precision 5 Axis Metal Milling Machine Mx400 Ultrasonic Cnc Vertical Machining Center
5 Axis Vertical Machining Center 5 Axis Cnc Milling Machine For Metals Fanuc Cnc Controllers smtcl 5 Axis Universal Milling Machine Heavy Duty Machining Center Cnc Milling Machine

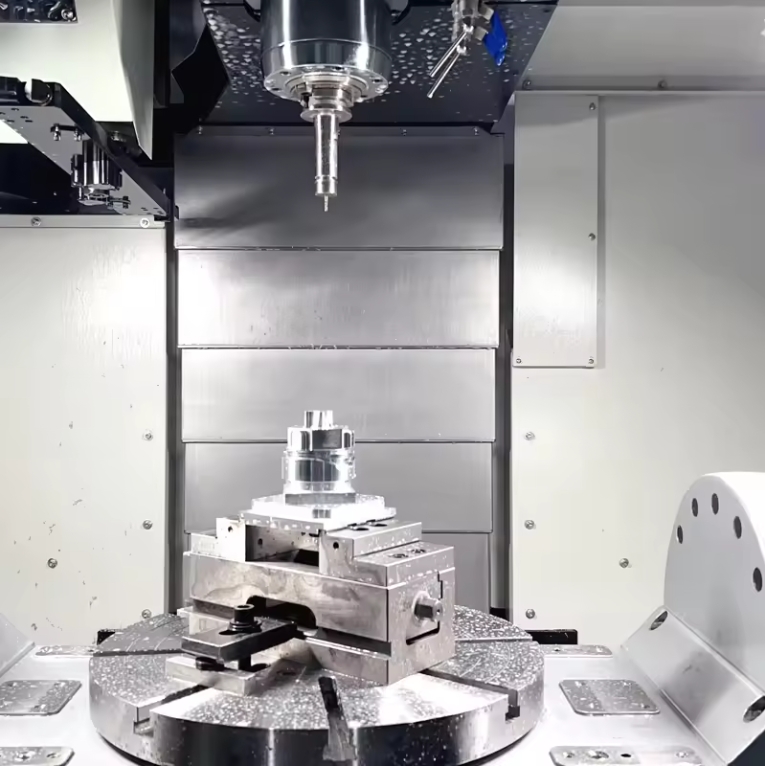

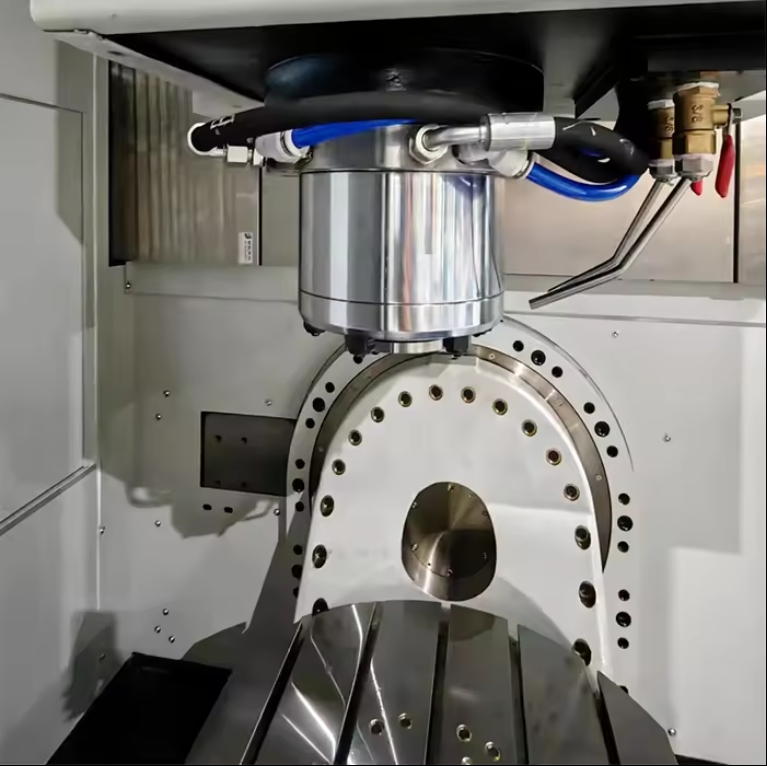

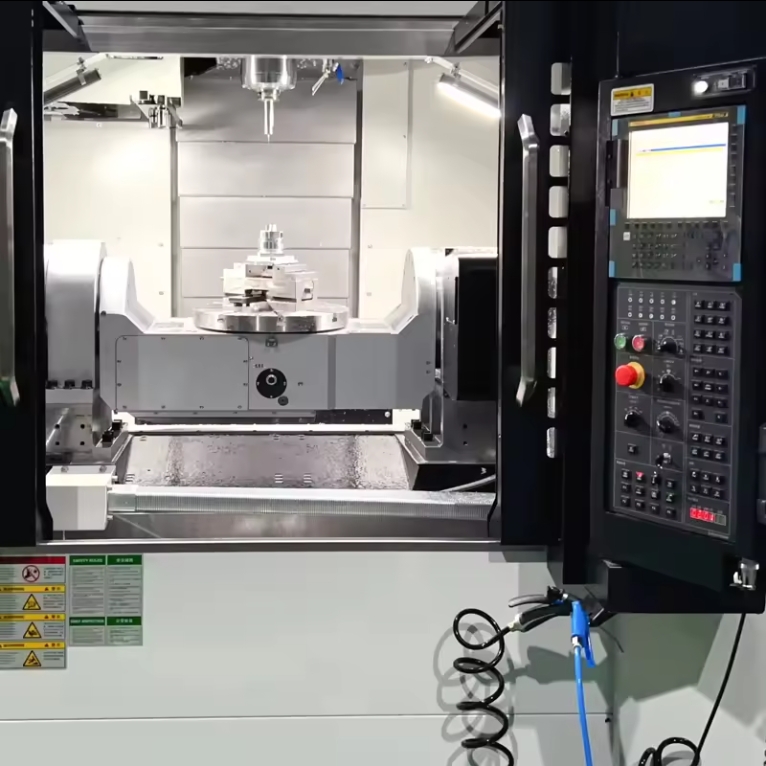

The overall design of the machine tool uses finite element analysis. The casting box is designed with a five-point support structure and is integrally formed using resin sand technology, which minimizes structural defects such as stress deformation and processing heat deformation of the machine tool. The material is made of HT300 high-strength cast iron, which has been tempered twice and artificially aged to effectively ensure the overall accuracy and quality of the machine tool and product quality. The machine tool adopts a BC structure design with a three-axis stroke of 650/450/475mm, which effectively increases the maximum space for five-axis simultaneous processing and reduces the possibility of component collisions during rotation. The maximum moving speed of the machine tool can reach 24/24/24m/min (X/Y/Z), and the spindle speed can reach 15000rpm. The entire process uses roller guide rails and Taiwanese brand ground double-nut ball screws, and both ends of the screw are pre-stretched. , eliminate the loss of precision caused by thermal elongation, and use precision screw support bearings to form a stable and high-rigidity mechanical transmission system. Improves the rigidity and stability during processing, and improves the machine tool's rapid response capability.
| Working Area | MX500 | |
| Table dimension | D630x500 | mm |
| Distance spindle nose – table | 140-615 | |
| X travel | 650 | |
| Y travel | 650 | |
| Z travel | 475 | |
| B travel | ±110 | ° |
| C travel | 360 | ° |
| Feed Drive | ||
| Rapid Traverse X/Y/Z | 30/30/30 | m/min |
| Main spindle | ||
| Spindle nose | HSK A63 | |
| Power | 15 | kW |
| Torque | 85/100 | Nm |
| Max. spindle Speed | 18,000 | rpm |
| Magazine | ||
| Number Tool Stations | 30 | pcs |
| Shank diameter | HSK A63 | mm |
| Positioning Accuracy according to VDI 3441 | ||
| Accuracy of positioning in X/Y/Z Axes (Indirect Measuring System) |
≤ 8 /8 / 10 | µm |
| Accuracy of repeatability in X/Y/Z Axes (Indirect Measuring System) |
≤ 6 /6 / 8 | µm |
| Hydraulic Unit | ||
| Tank Capacity | 5 | l |
| Pressure, max. | 75 | bar |
| Coolant Equipment | ||
| Coolant tank capacity | 200 | l |
| Chip conveyor capacit | 180 | l |
| Pump Power | 0,53 | kW |
| Pump nominal flow rate at 5 bar | 24 | l/min. |
| Electrical Connection | ||
| Installed Power, max | 50 | kVA |
| Voltage | 400 | V |
| Frequency | 50/60 | Hz |
| Fusing (slow-blowing) according to VDE 0100 | 50 | A |
| Allowed Voltage Fluctuation at 400 V | 10 | % |
| Acceptance | ||
| Machine Acceptance Test | according to VDI 3441 | |
| Pneumatics | ||
| Air Pressure | 6 | bar |
| Air consumption | 15 | m3/h |
| Environment Conditions | ||
| Room Temperature | + 15 to + 35 | °C |
| Max. relative air humidity | 75 | % |
| Max. Installation Height above msl | 1000 | m |
| Weights | ||
| Net weight of the machine with chip conveyor | approx. 7500 | kg |
| Dimensions | ||
| Machine with Chip Conveyor L x B x H discharge of chips from the right side |
approx. 2850 x 2300 x 2750 | mm |
