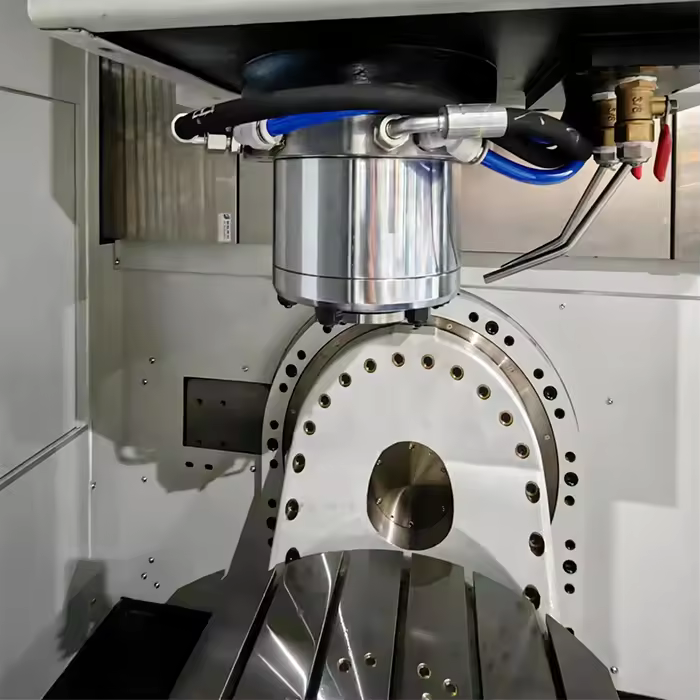

The overall layout of the machine tool is a whole bridge structure, and the base is fixed; The beam moves in Y direction on the base; The slide seat moves in X direction on the beam; The ram moves in the Z direction on the slide seat; The turntable is fixed on the base, and the table is rotated on axis A and C.
1. Bridge gantry frame, Y - axis dual drive, excellent dynamic performance.
2. A/C axis adopts linear motor direct drive, good dynamic performance, no wear, high accuracy retention.
3. The 3-axis lead screw adopts nut cooling to effectively control the thermal elongation of the transmission part and improve the thermal stability of the whole machine.
4. Three-axis roller linear guide, high precision, large load.
Machine Centre is a versatile CNC machine tool with a wide range of applications. It utilizes advanced digital control technology to achieve high-precision machining with efficiency and stability. Suitable for metal processing, mold manufacturing, and componentmachining, it offers users flexible and diverse machining options.
|
Machine Type |
Unit |
MX800 |
|
Worktable |
||
|
Table size |
mm |
800 |
|
Horizontal bearing of table |
kg |
1200 |
|
Vertical bearing of table |
kg |
1000 |
|
T-slot |
mm |
7-14*100 |
|
Tilt axis Angle |
。 |
±120 |
|
Rotational axis Angle |
。 |
360 |
|
Travel |
||
|
X-axis |
mm |
800 |
|
Y-axis |
mm |
900 |
|
Z-axis |
mm |
650 |
|
Spindle nose to worktable center |
mm |
100-750 |
|
Spindle |
||
|
Spindle taper |
|
HSK A63 |
|
Range of speed |
rpm |
10-15000 |
|
Spindle motor (Continuous /S6-40%） |
kw |
10/14 |
|
Spindle torque（Min/Max） |
Nm |
63.7/108.6 |
|
Feed speed |
||
|
The X-axis is moving fast |
m/min |
48 |
|
The Y-axis is moving fast |
m/min |
48 |
|
The Z-axis is moving fast |
m/min |
36 |
|
Maximum rotation speed of axis A |
rpm |
60 |
|
Maximum rotation speed of axis C |
rpm |
90 |
|
Tool magazine |
||
|
Capacity of tool magazine |
Tools |
30 |
|
Max. tool diameter |
mm |
120 |
|
Max. tool length |
mm |
300 |
|
Max. tool weight |
kg |
8 |
|
Tool change time |
sec |
2 |
|
Precision |
||
|
Positioning accuracy(X/Y/Z) |
mm |
0.008 |
|
Repeated Positioning accuracy(X/Y/Z) |
mm |
0.005 |
|
Positioning accuracy(B/C) |
sec |
±5 |
|
Repeated Positioning accuracy(B/C) |
sec |
±2 |
|

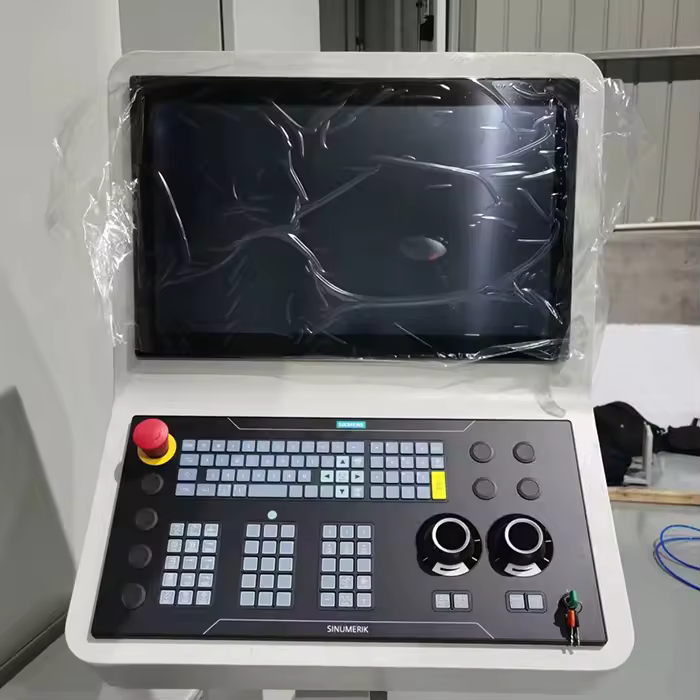

Control system |
||
|
Control system |
|
Heidenhain TNC640 |
|
Others |
||
|
Air supply pressure |
bar |
6-8 |
|
Air pressure flux |
L/min |
280 |
|
Weight |
T |
20 |
|
Floor area (length*width*height) |
mm |
3700*4400*3800 |
