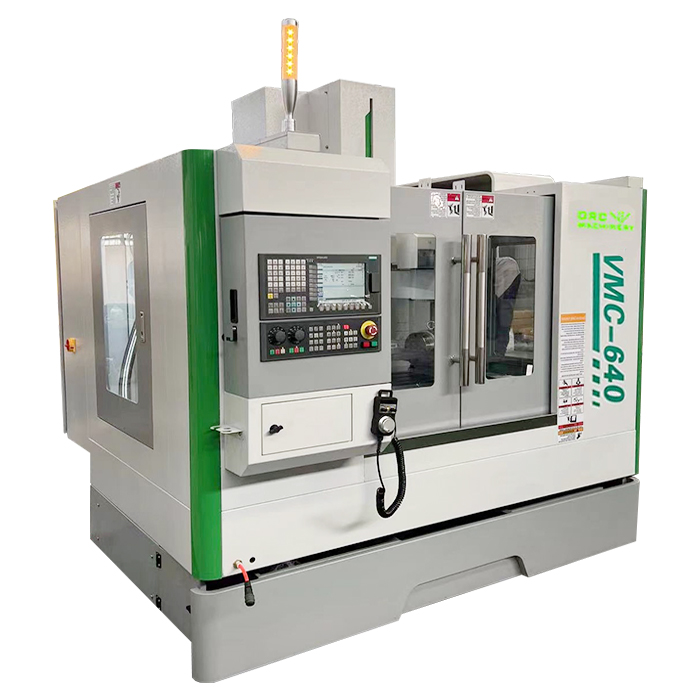

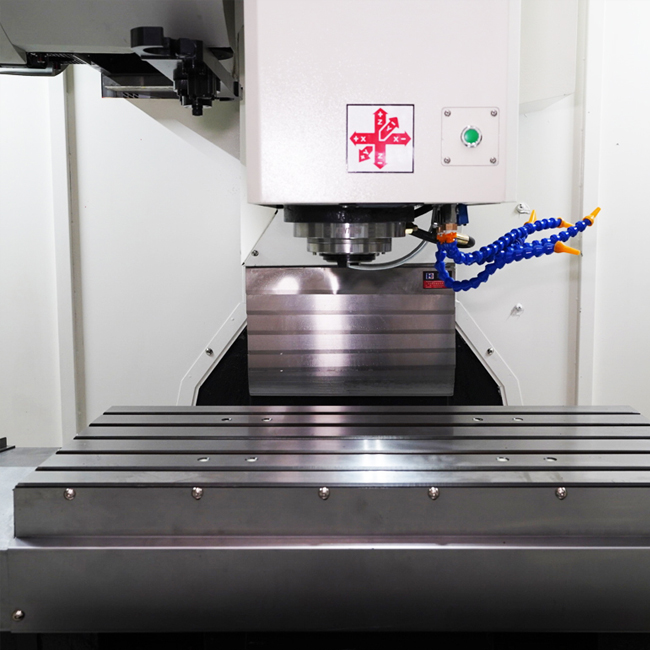

VMC640 Small CNC Machining Center
CNC vertical machine center vmc cnc milling machining center with high quality for metal work
DRC machining center is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Vertical machining center fearturs :
1.High quality resin sand
2. Japanese NSK bearing
3. Twaiwan spindle
4. Germany R+W coupling
5. Taiwan ball screw and locking nut
6. Automatic lubrication system
7. Taiwan pressure cylinder
8. Chip conveyor at optional
|
Model |
XH7132/VMC640 (GSK25i system) |
|
Travel parameters of 3 axis |
|
|
X axis travel |
600mm |
|
Y axis travel |
400mm |
|
Z axis travel |
450mm |
|
X/Y/Z Motor Torque |
8/8/15N.m |
|
Spindle face to table distance |
80-530mm |
|
Distance between spindle center and column guide surface |
350mm |
|
Worktable parameters |
|
|
Worktable size |
800×320mm |
|
Maximum load bearing of worktable |
400kg |
|
T Shot |
3×16×110mm |
|
Feeding parameters |
|
|
X/Y/Z axis rapid movement rate |
24/24/16 m/min |
|
Feed moving velocity X, Y, Z |
1-10m/min |
|
Spindle parameters |
|
|
Main shaft connection |
Belt |
|
Spindle taper |
BT40-120 |
|
Range of spindle speed |
8000rpm(Optional:10000 ) |
|
Spindle motor power |
3.7KW (Optional:5.5KW ) |
|
ATC paremeters |
|
|
ATC capacity |
12qty |
|
Maximum tool size |
Φ92mm(tool from a distance) |
|
Maximum tool weight |
5kg |
|
Precision |
|
|
The Vertical Permissible Error of Spindle Axis to Worktable Plane |
≤0.02mm |
|
Positioning Accuracy |
0.02mm |
|
Repeated Positioning Accuracy |
0.01mm |
|
Shape and weight |
|
|
Machine size |
2600×1950×2400mm |
|
Weight |
2800kg |
|
Main supplier of components |
|
|
The spindle group/Timing belt pulley |
Taiwan danquan |
|
Lead screw bearings (class P4) |
Germany FAG/ Japan NACHI |
|
Linear guideway |
Taiwan Shangyin/Yintai X30mm Y30mm Z30mm |
|
Automatic tool changer |
Dasu, Taiwan |
|
Ball screw F4016(grade C3) |
Haerbin China |
|
Lubricant pump |
Domestic Hegu / Baoteng |
|
Cooling pump |
Domestic Zhehong / Nuoke |
|
Main pneumatic element |
Taiwan Airtac |
|
Main electrical components |
France Schneider |
