VMC1160 CNC Machine Center
4 Axis Machine Taiwan VMC1160 CNC Vertical Machining Center CNC Milling
4 Axis Machine Taiwan VMC1060 CNC Vertical Machining Center CNC Milling
CNC vertical machine center vmc cnc milling machining center with high quality for metal work DRC machining center is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.

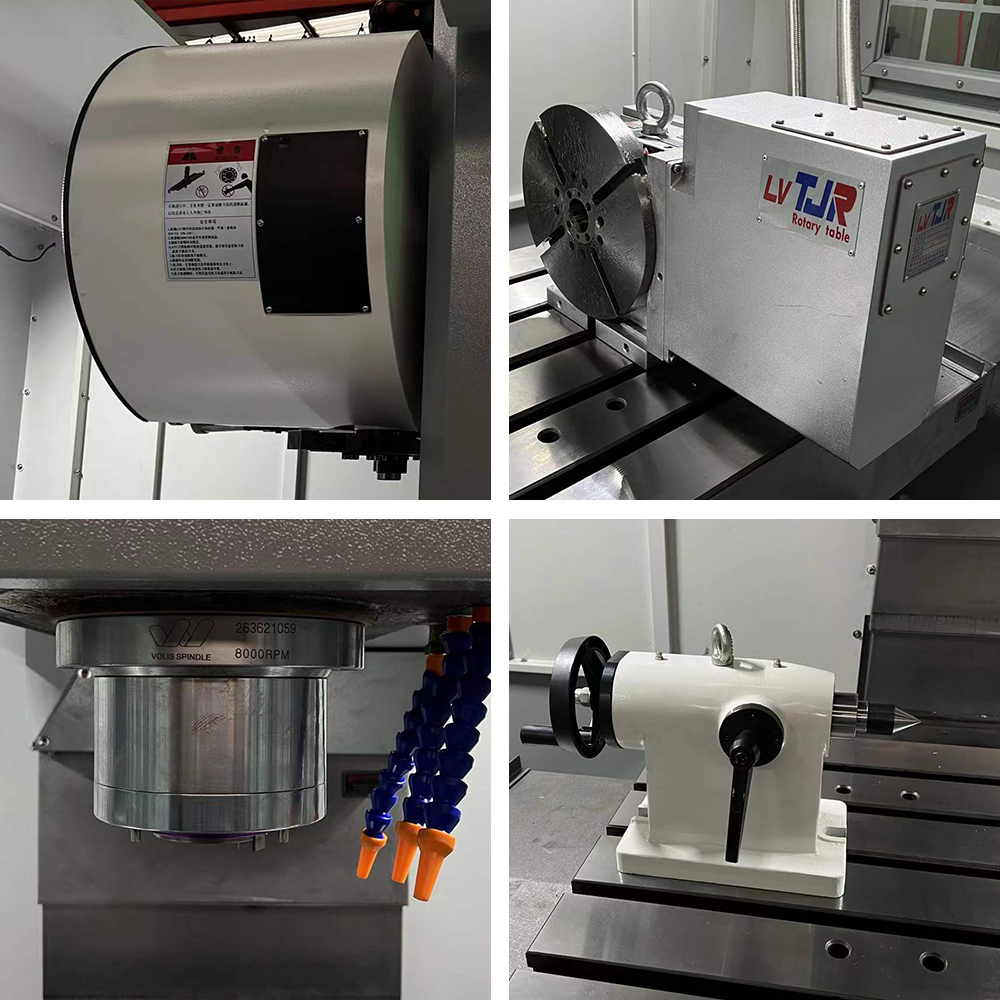

Vertical machining center fearturs :
1.High quality resin sand
2. Japanese NSK bearing
3. Twaiwan spindle
4. Germany R+W coupling
5. Taiwan ball screw and locking nut
6. Automatic lubrication system
7. Taiwan pressure cylinder
8. Chip conveyor at optional
| Model | VMC1160 | VMC1370 | VMC1580 | VMC1680 |
| Travel parameters of 3 axis | ||||
| X /Y/Zaxis travel | 1100/600/600mm | 1300/700/700mm | 1500/800/700mm | 1600/800/700 mm |
| Spindle face to table distance | 120-720mm | 120-820mm | 120-820mm | 150-885mm |
| Distance between spindle center column guide surface | 673mm | 750mm | 870mm | 882mm |
| Worktable parameters | ||||
| Worktable size | 1200×600mm | 1400×700mm | 1600*800mm | 1700*800mm |
| Maximum load bearing of worktable | 1000kg | 1000kg | 1500kg | 1500kg |
| T Shot | 5×18×100mm | 5×18×110mm | 5×22×135mm | 5×22×135mm |
| Feeding parameters | ||||
| X/Y/Z axis rapid movement rate | 36/36/36m/min | 24/24/20m/min | 24/24/18m/min | 30/30/30m/min |
| Feed moving velocity X, Y, Z | 1-10m/min | 1-6m/min | 1-6m/min | 1-10m/min |
| Spindle parameters | ||||
| Main shaft connection | Belt | Belt | Belt | Belt |
| Spindle taper | BT40-150 | BT40-150 | BT50-155 | BT50-155 |
| Range of spindle speed | 8000rpm | 8000rpm | 6000rpm | 6000rpm |
| Spindle motor power | 11kW(Alternating current servo) | 11kW(Alternating current servo) | 15kW(Alternating current servo) | 15kW(Alternating current servo) |
| ATC paremeters | ||||
| ATC capacity | 24qty | 24qty | 24qty | 24qty |
| Maximum tool size | Φ350/250mm/Φ150mm(tool from a distance) | Φ200mm(tool from a distance) | Φ200mm(tool from a distance) | Φ200mm(tool from a distance) |
| Maximum tool weight | 8kg | 8kg | 18kg | 18kg |
| Precision | ||||
| PositionaI accuracy | ±0.008/300mm | ±0.008/300mm | ±0.008/300mm | ±0.008/300mm |
| Repeated positioning accuracy | ±0.005mm | ±0.005mm | ±0.005mm | ±0.005mm |
| Shape and weight | ||||
| Machine size | 3700×2750×2800mm | 4050x3070x3200mm | 4150x2720x3200mm | 4050x3070x3610mm |
| Weight | 5800kg | 11000kg | 13000Kg | 13500kg |
