HT2 German Small CNC Turning Center
|
Parameter |
||
|
Spindle head |
type |
A2-5 |
|
Spindle maximum speed |
rpm |
5000 |
|
Spindle power |
kW |
5.5-7.5 |
|
Chuck diameter |
mm |
165 |
|
Spindle bore |
mm |
52 |
|
Front bearing diameter |
mm |
80 |
|
Spindle bearing lubrication |
type |
Grease |
|
Linear motion lubrication |
type |
Oil |
|
Speed range |
rpm |
5-5000 |
|
Work area |
||
|
Maximum swing over bed |
mm |
520 |
|
Maximum cutting diameter |
mm |
260 |
|
Suggest Max.cutting diameter |
mm |
150 |
|
Maximum cutting length |
mm |
200 |
|
Travel of Z-axis |
mm |
250 |
|
Travel of X-axis |
mm |
150 |
|
Ball screw |
||
|
X/Z axis ballscrew DxP |
mm |
32 x 10 |
|
Feed |
||
|
Rapid traverse Z |
m/min |
30 |
|
Rapid traverse X |
m/min |
30 |
|
Feed force of axis |
||
|
Feed force X/Z |
N |
3200 |
|
Number of axies |
|
2 |
|
Measuring system |
||
|
X/Z axis measuring system |
|
Absolute rotative |
|
(X / Z);VDI/DGQ 3441 Positioning |
mm |
0.006/0.006 |
|
(X/ Z);VDI/DGQ 3441 Repeatability |
mm |
0.004/0.004 |
|

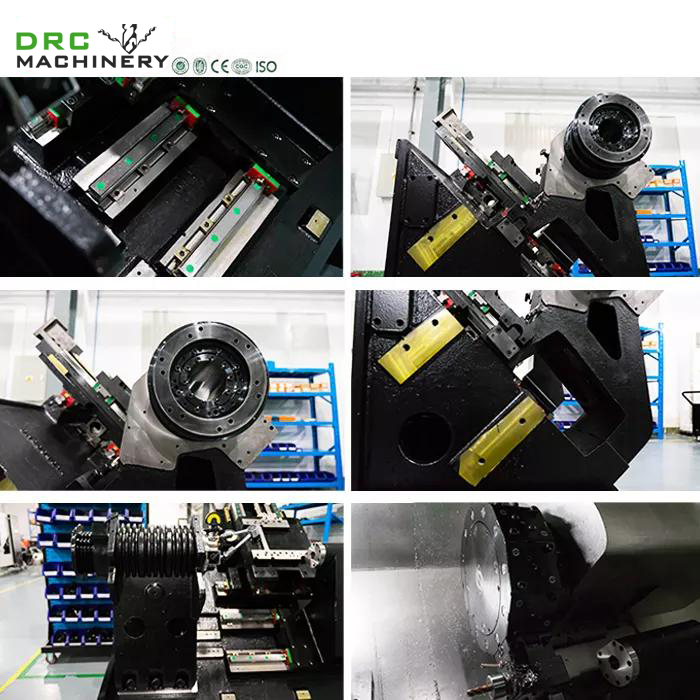

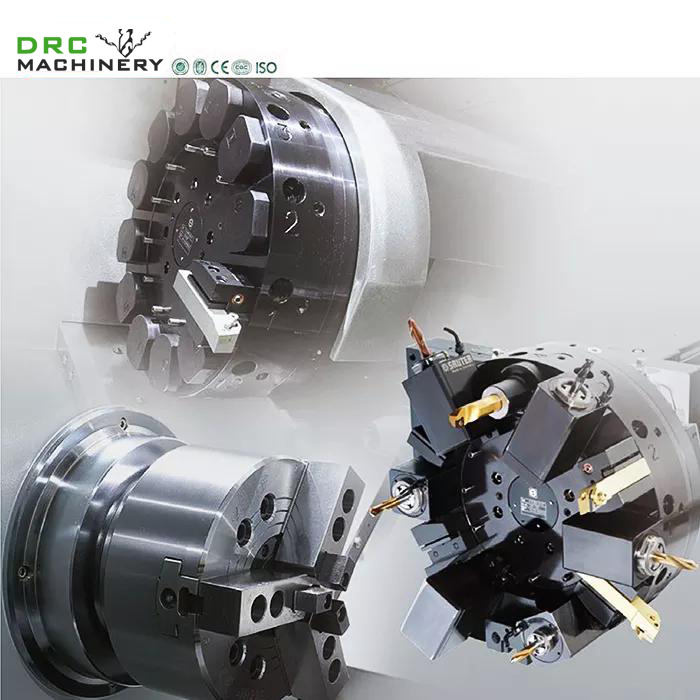

Tool attachments |
||
|
Servo turret |
type |
Pragati |
|
No.of tool stations |
- |
12 |
|
Turret disk type |
- |
Slot disk |
|
Tool attachment |
mm |
25 /40 |
|
Electrical specifications |
||
|
Voltage |
V |
380 ±10% |
|
Frequency |
Hz |
50 ± 1% |
|
Max. installed power |
KVA |
20 |
|
400v lie protection fuses |
A |
63 |
|
400v line automatic circuit breaker |
A |
33 |
|
Connection cables section |
mm2 |
4 x 10 |
|
Hydraulic unit |
||
|
Max. working pressure |
bar |
35 |
|
Reservoir capacity |
l |
20 |
|
Pump flow |
I/ min |
24 |
|
Coolant system |
||
|
Capacity with tank |
l |
100 |
|
Pump delivery |
l /min |
30 |
|
Pump pressure |
bar |
5 |
|
Noise level |
||
|
Less than |
dB (A) |
≤80 |
|

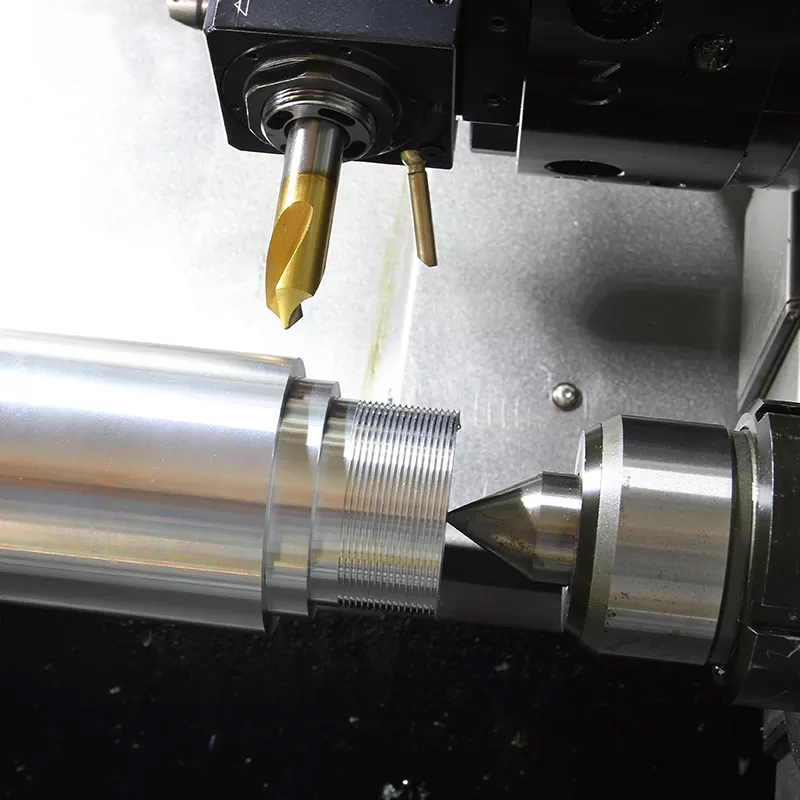

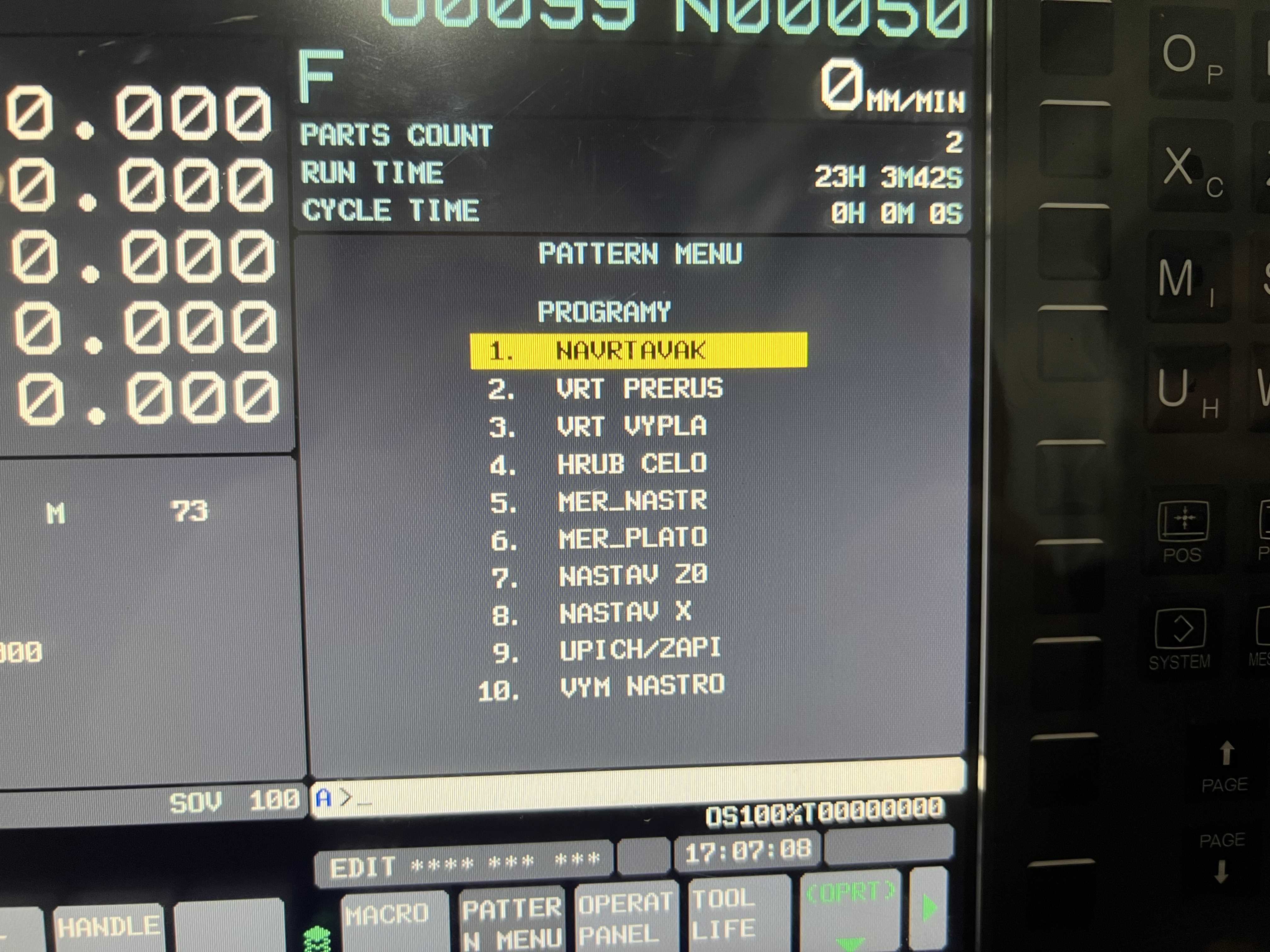

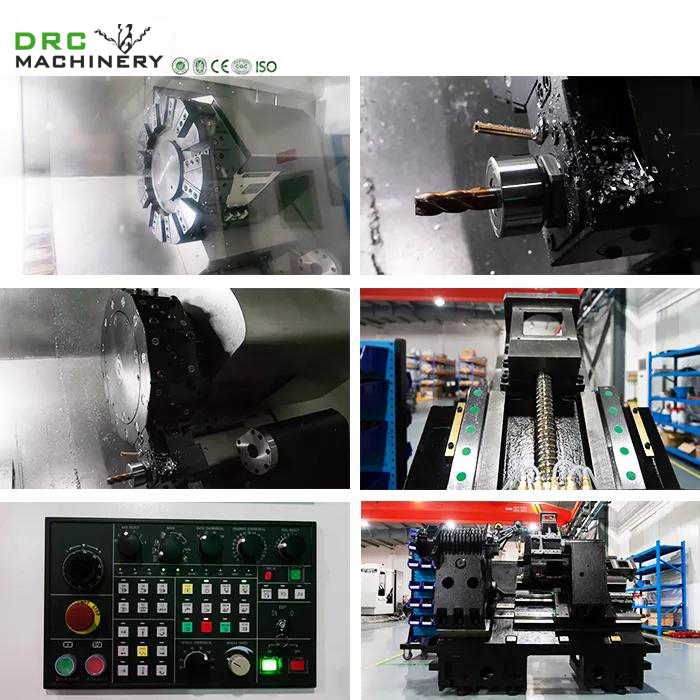

Control system |
|
|
|
FANUC |
|
Fanuc0iT + Manual Guide i |
|
Net weight |
kg |
About 2800 |
|
Slant angle, Material |
° |
45°, HT300 |
