HT3 Small CNC Turning Milling Lathe
HT3 CNC lathe is a two-axis linkage, fully closed-loop CNC machine tool. The machine machine-electric-hydraulic integrated layout adopts a fully enclosed protective cover, the door opens to the left, and the operating table is located on the right end of the fixed protective cover, and the ergonomic swing design makes the operation more convenient. Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise, high positioning accuracy and repeated positioning accuracy; the servo motor is equipped with an absolute value encoder, no cumulative error, no memory, No need to find a reference point, the position information will not be lost after the power is cut off. The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.
|
Parameter |
||
|

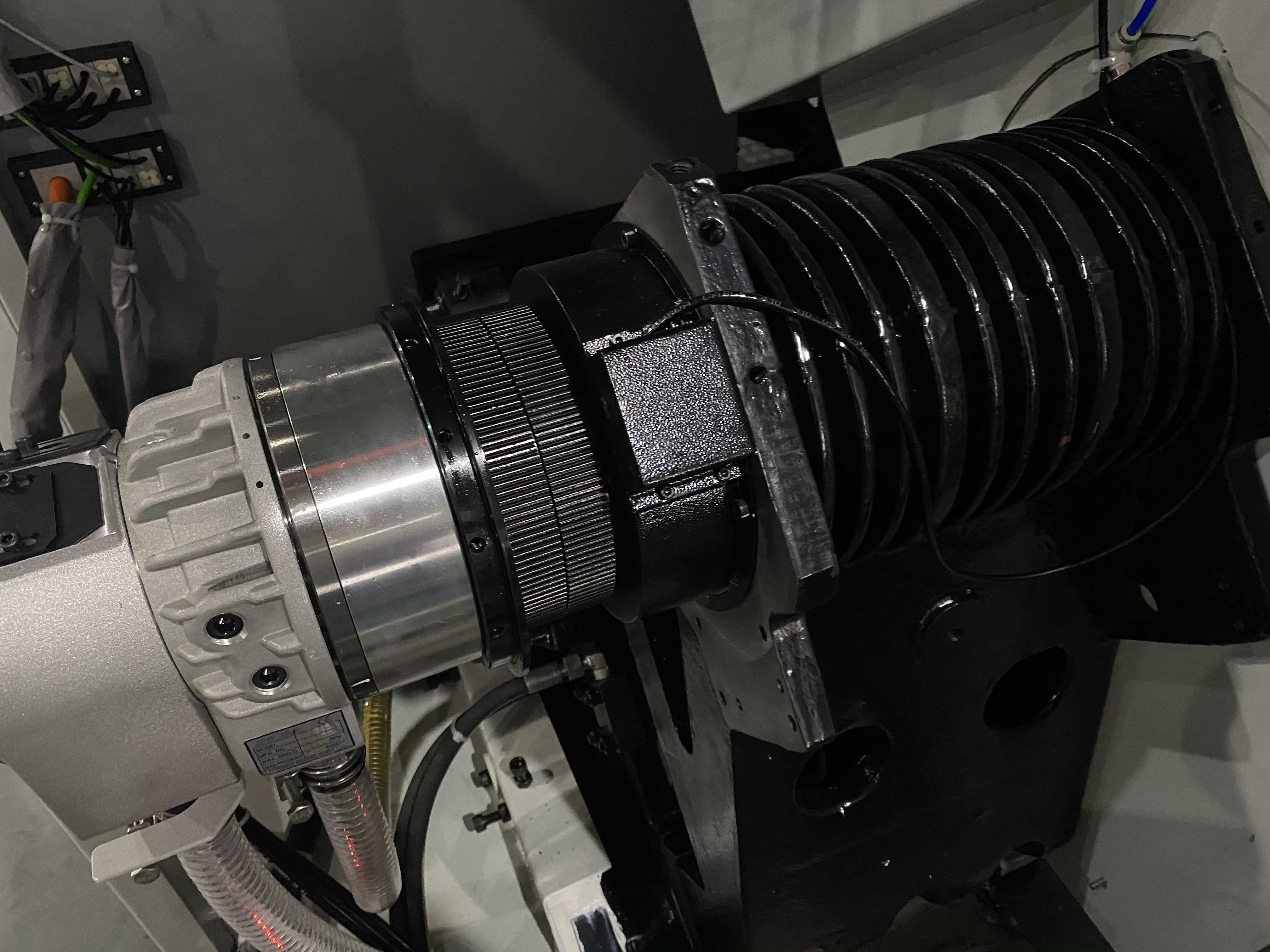

Spindle head |
type |
FL 140 h5 / A2-6 |
|
Spindle maximum speed |
rpm |
5000 |
|
Max. Torque |
N×m |
112 |
|
Spindle power |
kW |
11-15 |
|
Chuck diameter |
mm |
210 |
|
Spindle bore |
mm |
74 |
|
Front bearing diameter |
mm |
100 |
|
Spindle bearing lubrication |
type |
Grease |
|
Linear motion lubrication |
type |
Oil |
|
Speed range |
rpm |
5-5000 |
|
Work area |
||
|
Maximum swing over bed |
mm |
576 |
|
Maximum cutting diameter |
mm |
390 |
|
Maximum cutting length |
mm |
500 |
|
Maximum bar capacity |
mm |
51 |
|
Travel of Z-axis |
mm |
525 |
|
Travel of X-axis |
mm |
225 |
|
Ball screw |
||
|
X/Z axis ballscrew DxP |
mm |
32 x 10 |
|
Feed |
||
|
Rapid traverse Z |
m/min |
30 |
|
Rapid traverse X |
m/min |
30 |
|
Feed force |
||
|
Feed force X/Z |
N m |
4500 |
|
Number of axis |
2 |
|
|
Measuring system |
||
|
X/Z axis measuring system |
Absolute rotative |
|
|
(X / Z);VDI/DGQ 3441 Positioning |
mm |
0.008/0.008 |
|
(X/ Z);VDI/DGQ 3441 Repeatability |
mm |
0.004/0.005 |
|
Tailstock |
||
|
Travel of tailstock |
mm |
500 |
|
Tailstock moving type |
Hydraulic programmable |
|
|
Max. pressure of tailstock |
N |
4000 |
|
Tailstock centre sleeve |
type |
MT 4 |
|

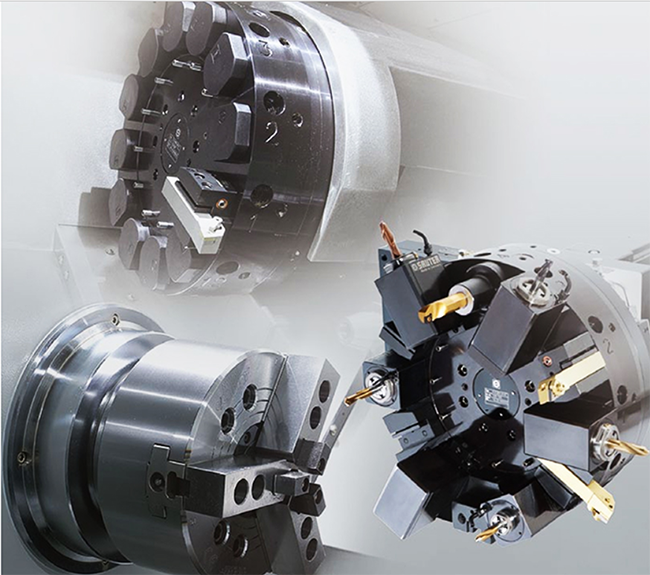

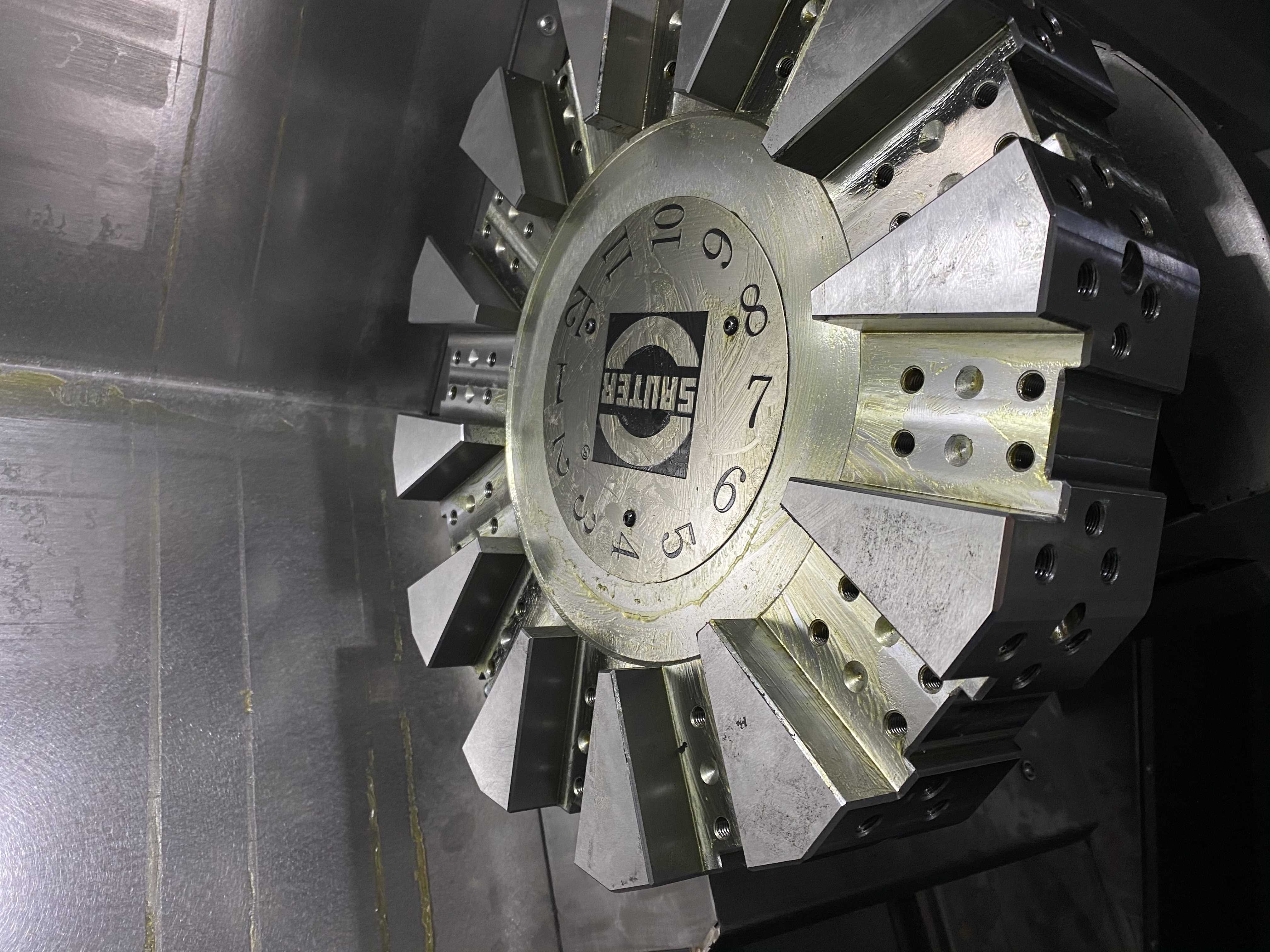

Servo turret |
||
|
No.of tool stations |
- |
12 |
|
Turret disk type |
- |
Slot disk |
|
Tool attachment |
mm |
□25, Ø40 |
|
Electrical specifications |
||
|
Voltage |
V |
380 ±10% |
|
Frequency |
Hz |
50 ± 1% |
|
Max. installed power |
KVA |
20 |
|
400v lie protection fuses |
A |
63 |
|
400v line automatic circuit breaker |
A |
33 |
|
Connection cables section |
mm2 |
4 x 10 |
|
Hydraulic unit |
||
|
Max. working pressure |
bar |
40 |
|
Reservoir capacity |
l |
35 |
|
Pump flow |
I/ min |
24 |
|
Coolant system |
||
|
Capacity with tank |
l |
180 |
|
Pump delivery |
l /min |
30 |
|
Pump pressure |
bar |
5 |
|
Noise level |
||
|
Less than |
dB (A) |
≤80 |
|
Control system |
||
|
FANUC |
- |
0i-TF plus |
|
Net weight |
kg |
4000 |
|
Slant angle, Material |
- |
45°, HT300 |
