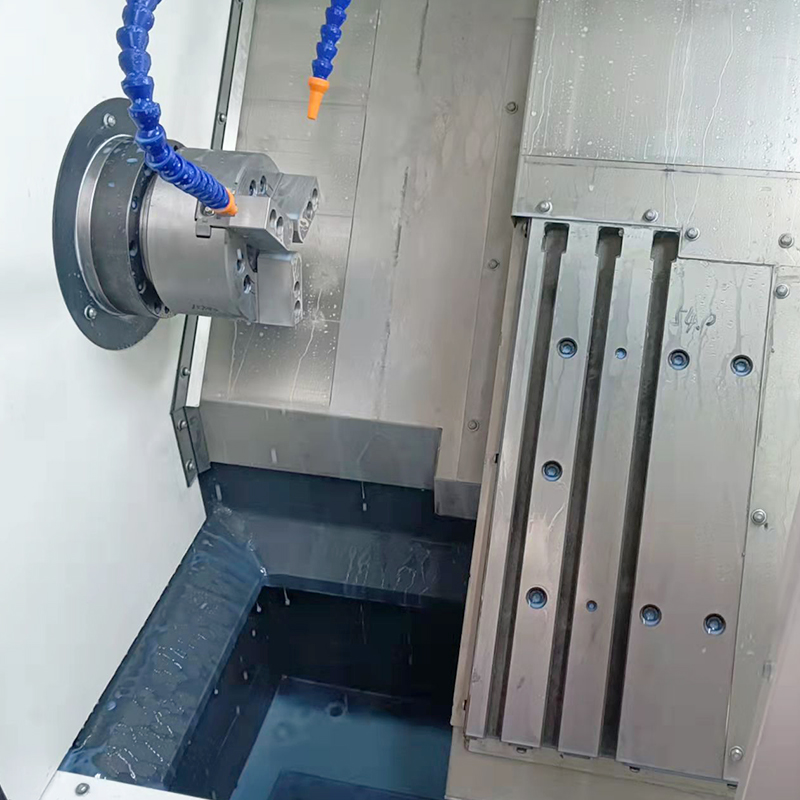

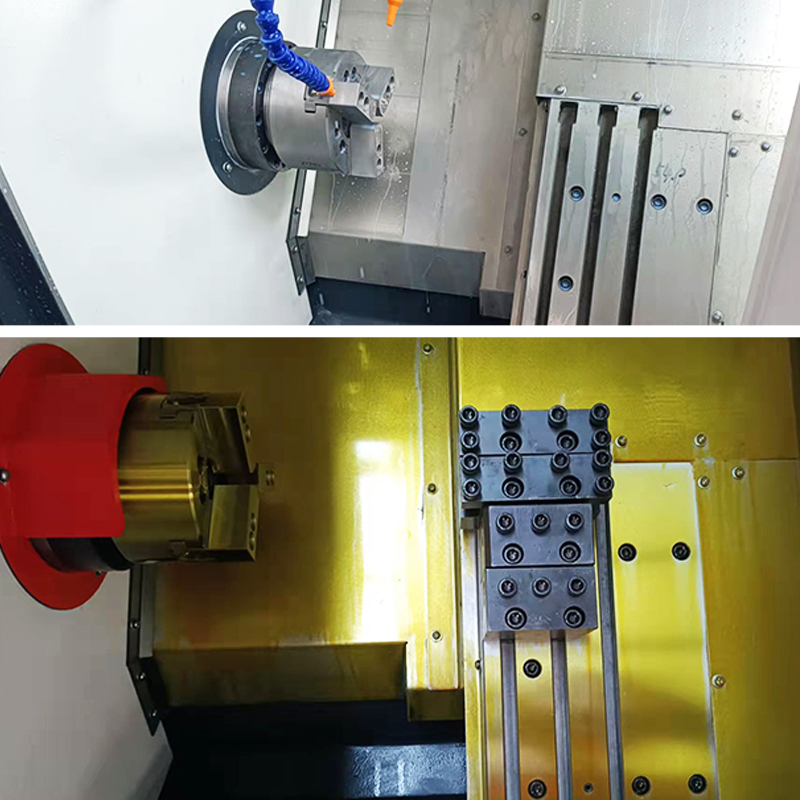

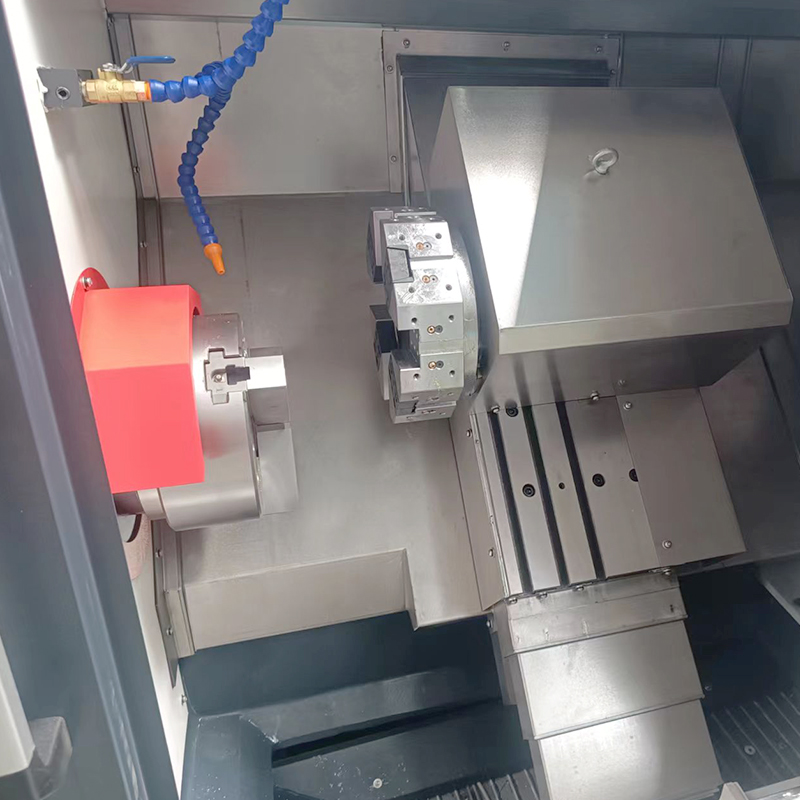

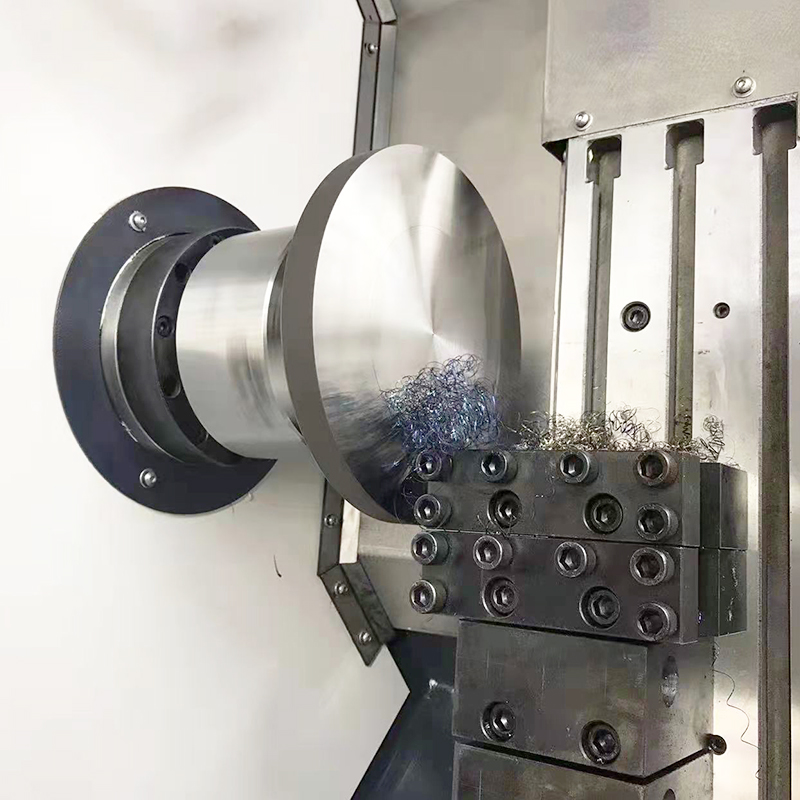

TCK6350 Metal Milling Turning Center
|
Model |
TCK 6350 (Fanuc0iT + MGi system) |
|
Standard accessories |
Unit ( mm ) |
|
Maximum turning diameter of bed |
Φ520 |
|
Maximum turning diameter of cross slide |
Φ220 |
|
Maximum processing length |
410(Row of knives) |
|
Standard chuck specifications |
10 inch |
|
X axis maximum stroke |
500 |
|
Z axis maximum stroke |
500 |
|
Spindle speed |
3000rpm |
|
Spindle speed stage |
stepless |
|
Spindle end code |
A2-6 |
|
Spindle through hole |
Φ66 |
|
Pull tube through hole |
Φ55 |
|
Cutting feed rate |
1-15000mm/min |
|
X/Z motor torque |
7.5/7.5/NM(X direction with brake) |
|
X/Z axis rapid movement rate |
24/24m/min |
|
Tool body size of turning tool |
25*25 |
|
Spindle motor power |
5.5KW |
|
Turret type |
4 rows of knife holders(Optional):6/8Tool Turret |
|
Guide way type |
45 degrees of inclined rail |
|
Screw bearing |
25TAC62 |
|
Dimensions (length × width × height) |
2500×1620×1890 |
|
Total Weight |
2900KG |
|
Main accuracy index of machine tool |
|
|
Test items |
Standard tolerance(mm) |
|
Periodic axial movement of the spindle |
0.005 |
|
Radial runout of the positioning cone of the |
0.005 |
|
Position |
X:±0.003 Z:±0.003 |
|
Repeat positioning accuracy A |
X:±0.003 Z:±0.003 |
|
Diameter consistency |
0.01/150 |
|
Flatness |
0.02/φ200 |
|
Thread pitch product error |
0.010/50 |
|
Surface roughness |
Ra1.6μm |
