CK1107 Swiss Type CNC Lathe

High-precision CK1107 three-axis swiss type CNC lathe

Inquire Now

None

Share

CONTACT US

Dalian R&C Machinery Co., Ltd.

High-precision CK1107 three-axis swiss type CNC lathe

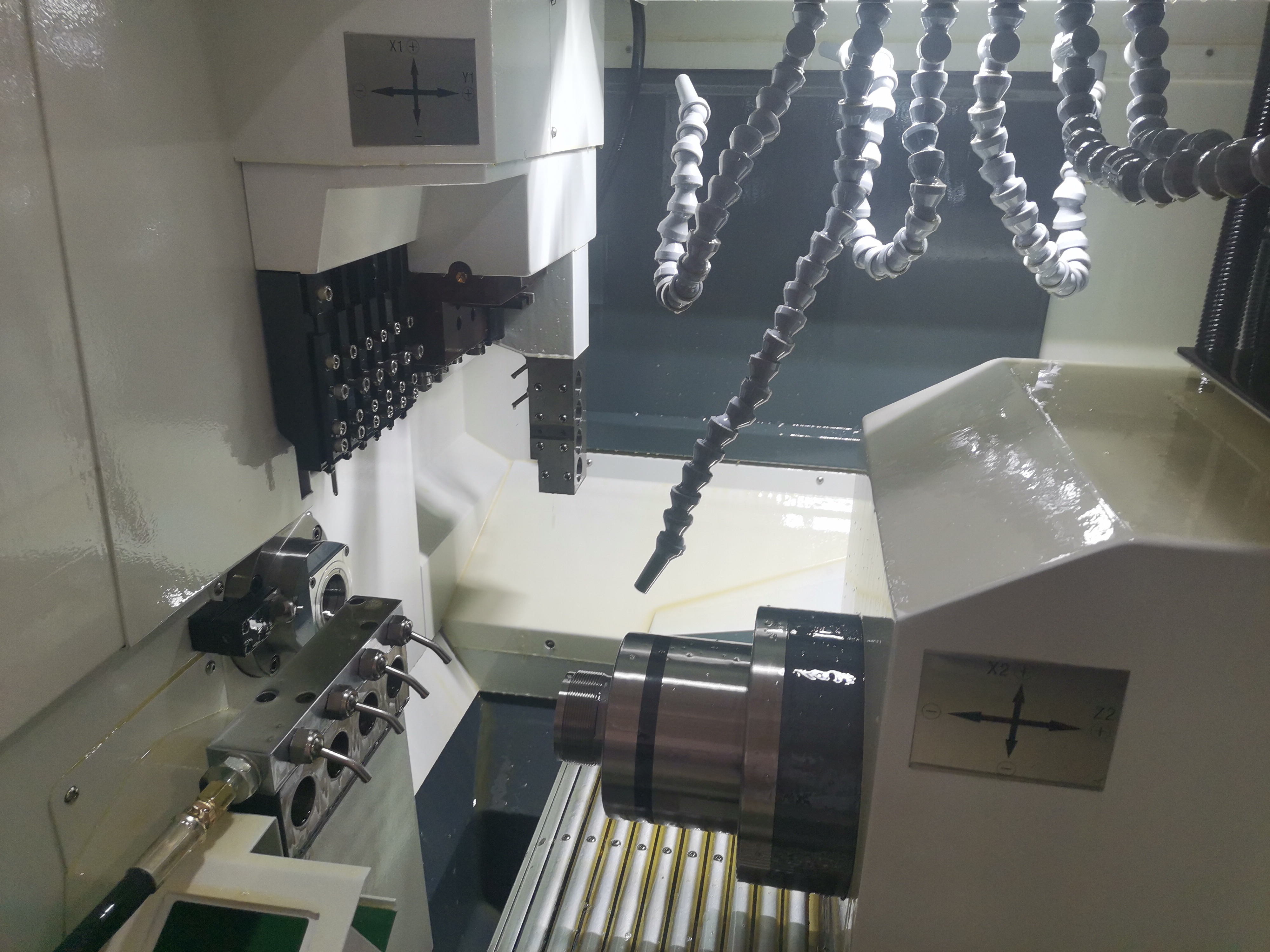

Swiss Type 5 Axes Cnc Lathe With High Quality The three axes of the CK1107 walking-type CNC lathe adopt linear rolling guides, which are driven by the same absolute value motor. The linear tool arrangement structure has the characteristics of rapid tool change and high precision. Equipped with automatic feeder, it can realize automatic production. ·The structure of left and right rows of knives, the number of knives is large, the speed of knives change is fast, and the rigidity is good. ·It can process all kinds of super slender parts. ·Reasonable layout, compact appearance and small footprint. ·Fixed guide bush can process slender shafts with a length of less than 150m, so that the processed workpiece can maintain relatively high coaxiality and smoothness, which is very suitable for turning workpieces with large diameter ratio.

Power supply

Power supply rated voltage

Three-phase AC 380V

Power supply rated frequency

50HZ

Total input power

4kW

CNC system

BYSK

YZ150

Small setting unit

0.001mm

X axis pulse equivalent

0.0005mm

Y axis pulse equivalent

 0.001mm

Z axis pulse equivalent

0.001mm

Large programming size

±9999.999

Cutting speed

1--4000mm/min

X axis rapid feed rate

15000mm/min

Y axis rapid feed rate

15000mm/min

Z axis rapid feed rate

15000mm/min

Spindle

Large bar diameter

Φ7mm

Spindle hole diameter

Φ8mm



The height of the spindle center from the ground

890mm

Spindle speed

0-5000r/min

Spindle motor power

2kW

Journey

X axis travel

38mm (amount of diameter)

Y axis travel

80mm

Z axis travel

150mm

X axis servo motor power

0.4kW

Y axis servo motor power

0.4kW

Z axis servo motor power

0.4kW

Slide form

Linear Guides
