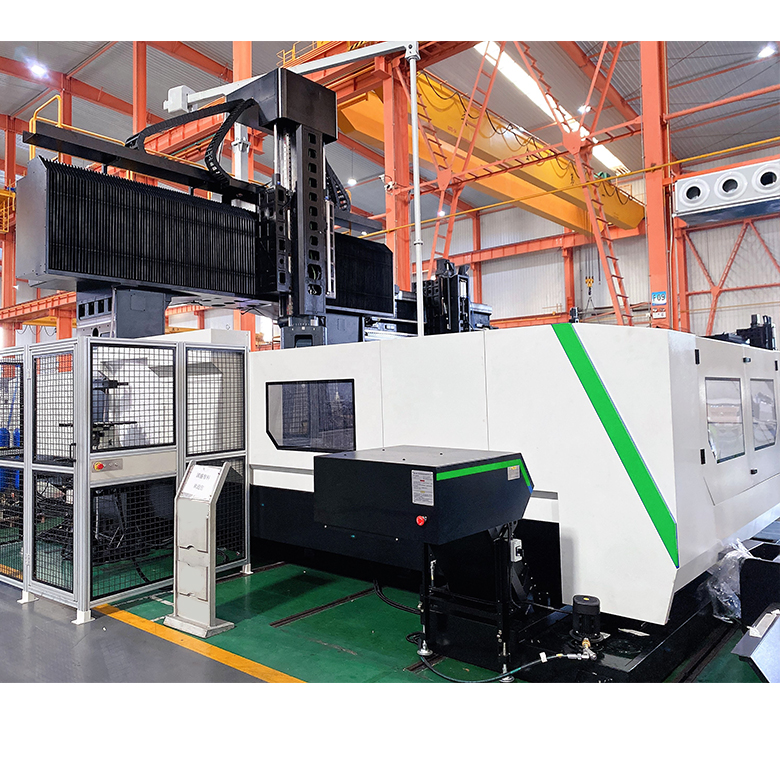

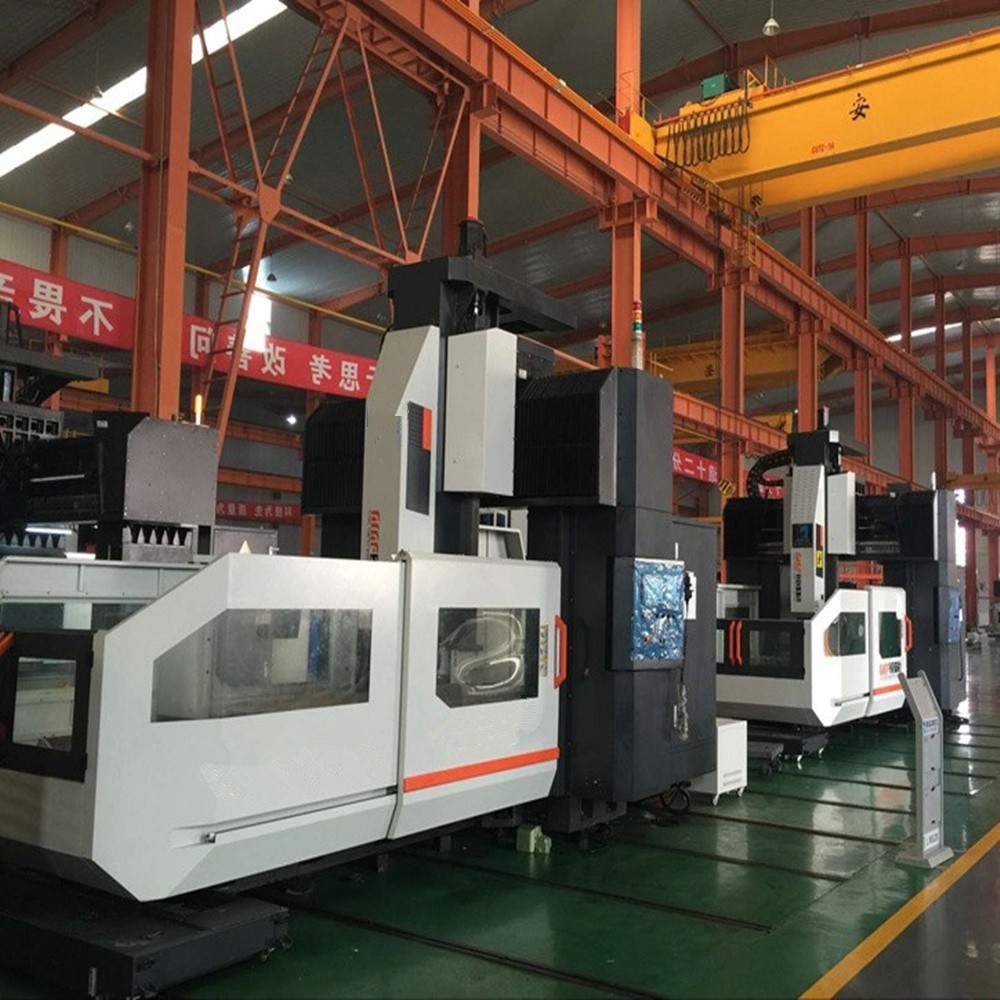

GMF3015B Gantry Machining Center
|
Specifications |
15B Series |
||||
|
Machine Type |
Unit |
GMF2015B |
GMF2515 B |
GMF3015 B |
|
|

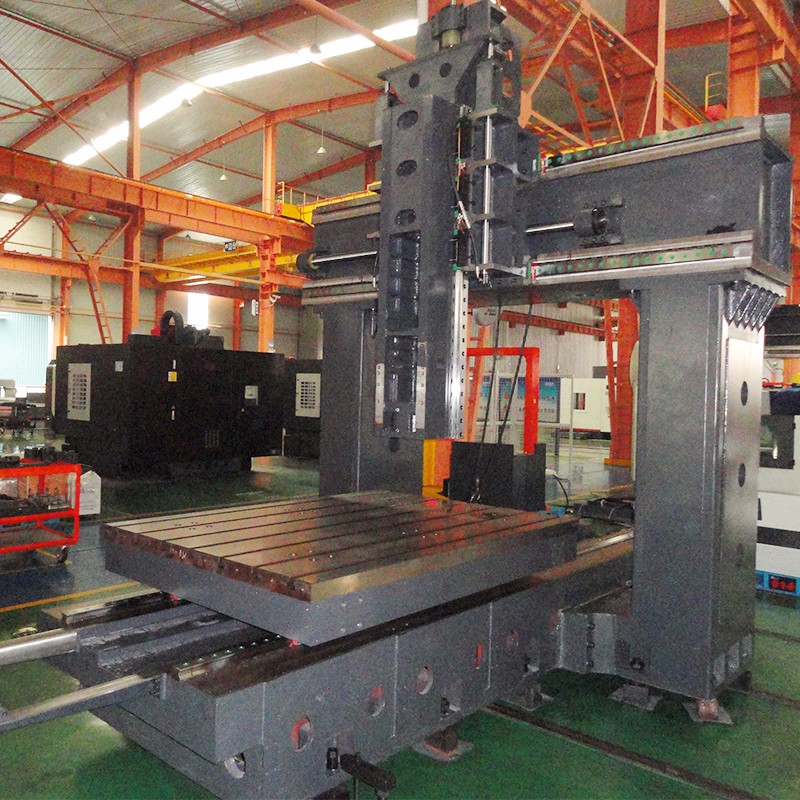

Worktable |
|||||
|
Worktable (length×width) |
mm |
2200*1300 |
2700*1300 |
3200*1300 |
|
|
Maximun Load of table |
kg |
6000 |
8000 |
8000 |
|
|
T-slot |
mm |
7-22×175 |
|||
|
Triaxial itinerary |
|||||
|
Gantry width |
mm |
1550 |
|||
|
Travel for X/Y/Z axis |
m |
2000/1500/900 |
2500/1500/900 |
3000/1500/900 |
|
|
Distance from spindle nose to table surface |
mm |
150-1050 |
|||
|
Feed system |
|||||
|
CNC system |
FANUC Oi MF |
||||
|
Rapid shift of axis of X/Y/Z |
m/min |
12/12/10 |
12/12/10 |
10/12/10 |
|
|
Maximun cutting feed speed |
m/min |
7 |
|||
|
Automatic tool transform system |
|||||
|
Standard tool quantity |
Piece |
BT50/24 |
|||
|
The larges diameter cutter knife/length |
mm |
Φ110/300 |
|||
|
Tool exchanging manner |
Pneumatic |
||||
|
Maximum tool weight |
kg |
18 |
|||
|

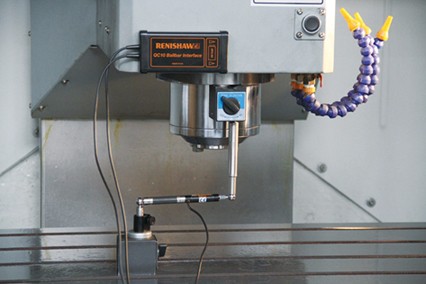

Precision |
|||||
|
Positioning accuracy |
mm |
0.021 |
|||
|
Accuracy of repeated |
mm |
0.02 |
|||
|
Guide form and specifications |
|||||
|
X/Y/Z-axis guide specifications |
2-45(X)/2-45(Y)/Z axis hard rail |
||||
|
Spindle system |
|||||
|
Spindle specifications |
BT50/Φ190 |
||||
|
Speed with belt drive milling head |
r.p.m |
6000 |
|||
|
Motor power of spindle |
kw |
15/18.5 |
|||
|
Air pressure |
|||||
|
Requirements for air |
kg/cm² |
≥6 |
|||
|
Air pressure flux |
m³/min |
≥0.5 |
|||
|
Machine specifications |
|||||
|
Integrated weight |
kg |
18000 |
20000 |
21000 |
|
|
Overall dimension (length×width×height) |
mm |
6110*3320*4480(Travel peak) |
7150*3320*4536 |
8150*3320*4536 |
|
