XH7136/VMC600 Small Machining Center
|
Model |
XH7136 (GSK 25i system) |
|
Travel parameters of 3 axis |
|
|
X /Y/Zaxis travel |
900/300/450mm |
|
Spindle face to table distance |
100-550mm |
|
Distance between spindle center and column guide surface |
380mm |
|

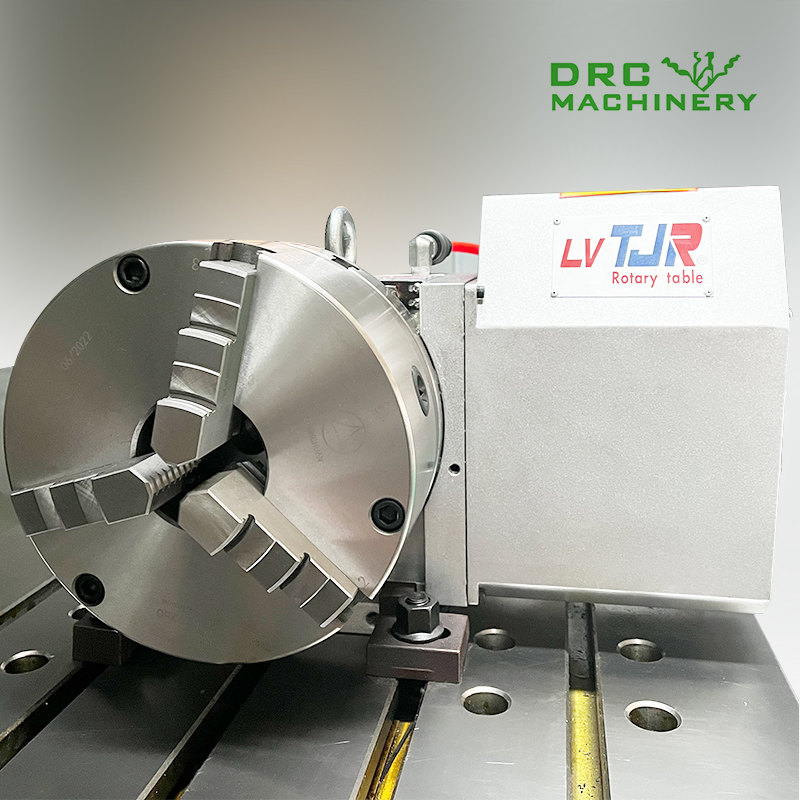

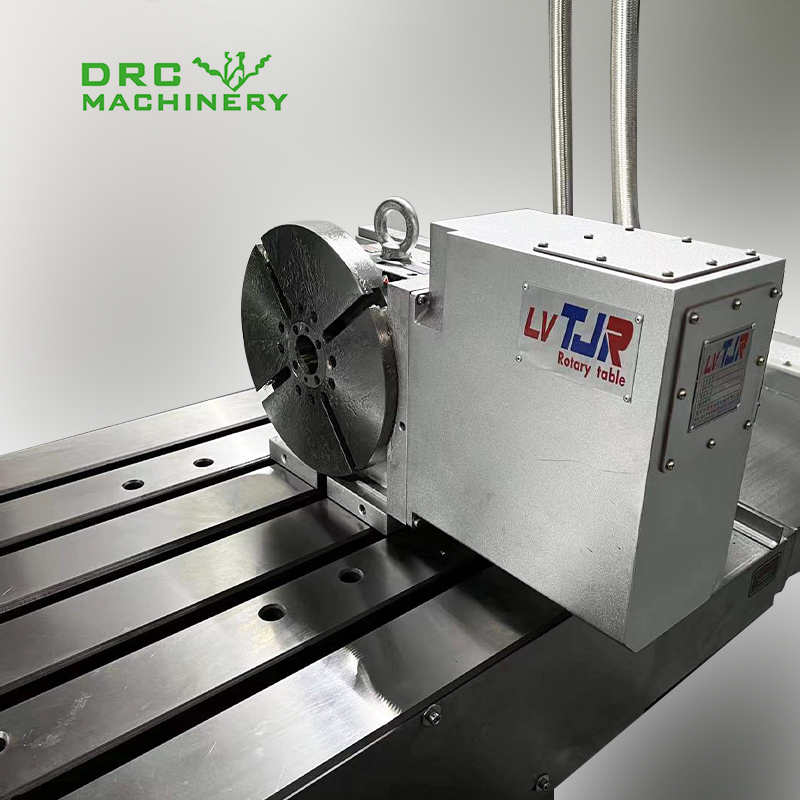

Worktable parameters |
|
|
Worktable size |
800×300mm |
|
Maximum load bearing of worktable |
300kg |
|
T Shot |
3×16×110mm |
|
Feeding parameters |
|
|
X/Y/Z axis rapid movement rate |
10/10/10 m/min |
|
Feed moving velocity X, Y, Z |
1-6m/min |
|
Spindle parameters |
|
|

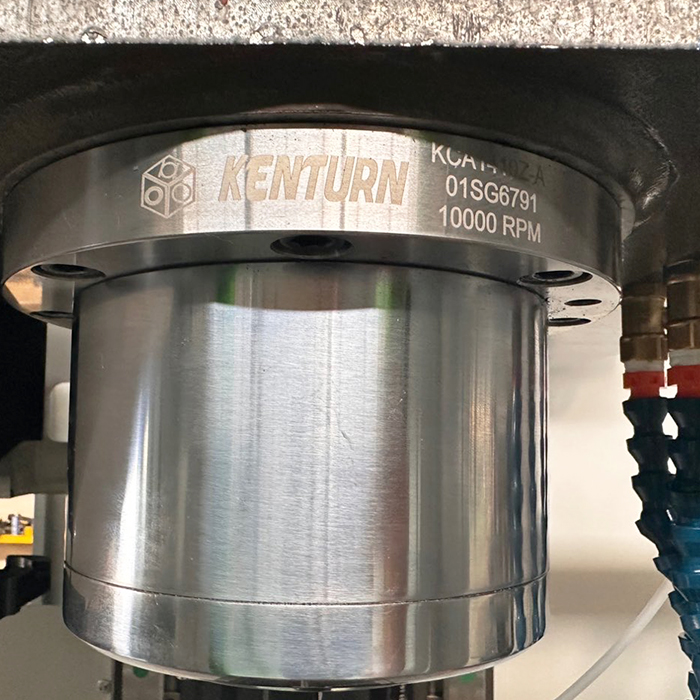

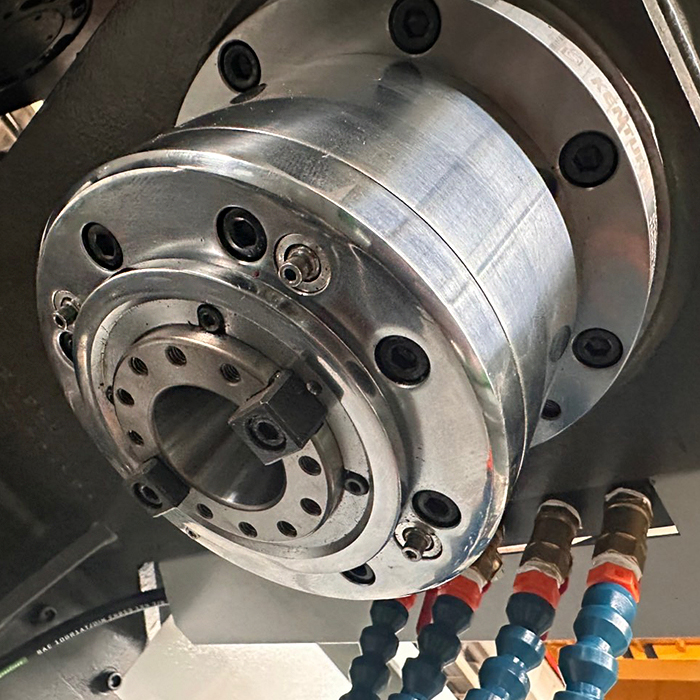

Main shaft connection |
Belt |
|
Spindle taper |
BT40-120 |
|
Range of spindle speed |
8000rpm |
|
Spindle motor power |
(Alternating current servo)5.5kW |
|
ATC paremeters |
|
|
ATC capacity |
16qty |
|
Maximum tool size |
Φ92mm(tool from a distance) |
|
Maximum tool weight |
5kg |
|
Precision |
|
|
PositionaI accuracy(JIS standard) |
±0.008/300mm |
|
Repeated positioning accuracy(JIS standard) |
±0.005mm |
|
Shape and weight |
|
|
Machine size |
2200×1800×2260mm |
|
Weight |
2900kg |
|
Standard accessories |
|
|
GSK 25i CNC System |
Bt40-120-8000rpm belt spindle |
|
Machine tool lighting working lamp |
Centralized automatic feed lubrication system |
|

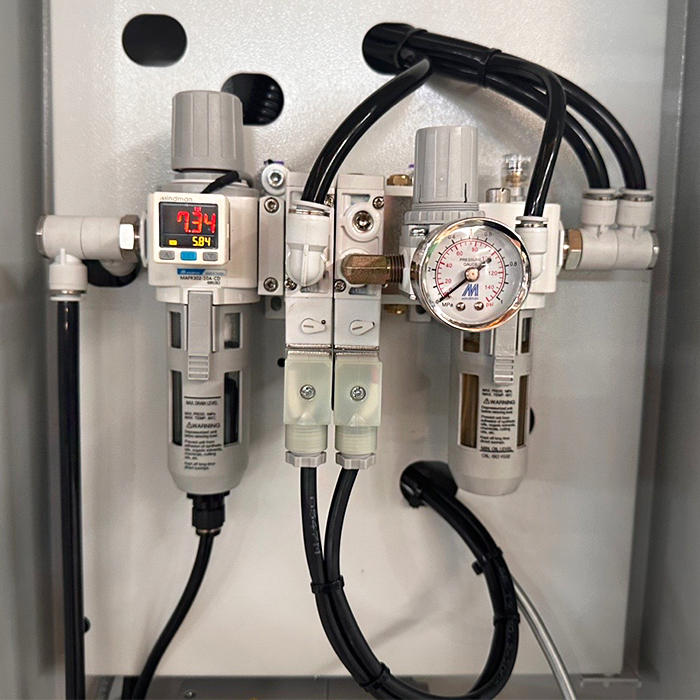

Spindles clean the air |
Spindle taper: BT40 |
|
Chip liquid system |
Tricolor warning light |
|
10.4 "display |
Separate handwheel |
|
Servo transformer |
RS232 interface |
|
Foundation gasket and adjusting bolt |
Three ball type linear guide rail |
|
Random technical document |
Three-axis precision grinding ball screw |
