CK6140 CNC Lathe
Siemens Flat Bed Cnc Lathe Price CK6140 Horizontal Automatic Turning CNC Lathe Machine
◆This series of machine tools is a mature product mainly exported by Dalian DRC Machine Tool Co., Ltd. The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.

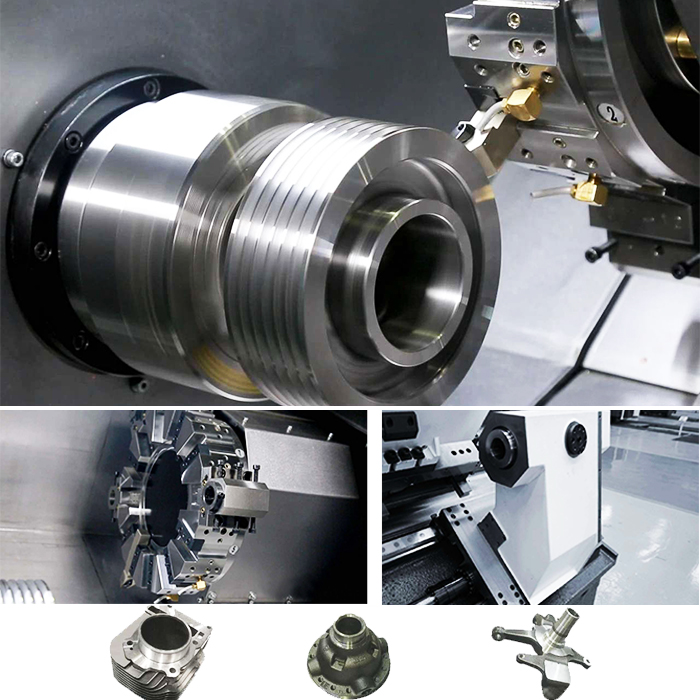

◆Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.
◆Both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails of special materials, which are super hard and wear-resistant, durable, and have good machining accuracy retention after high-frequency quenching.
◆Adopt domestic famous ball screw and high-precision screw bearing.
◆Each lubrication point adopts a forced automatic lubrication device for fixed-point and quantitative lubrication of the lead screw and guide rail. When there is an abnormal state or the amount of oil is insufficient, a warning signal is automatically generated.
◆The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of the iron filings.
|
Model |
CK6140*750mm (GSK980TC3 system) |
|
Processing ability |
Unit ( mm ) |
|
Max. swing over bed |
400 |
|
Max. swing over slide |
240 |
|
Max. Processing length |
750mm(Optional:500/1000/1500) |
|
Travel |
|
|
X/Z axis travel |
280/750 |
|
Spindle nose |
A2-6 |
|
Spindle |
|
|
Spindle bore diameter |
82 |
|
Pull tube hole diameter |
65 |
|
Spindle inner hole taper |
40° |
|
Spindle series |
stepless |
|
Max. spindle speed |
150-2000 rpm |
|
Workpiece clamping mode |
Manual chuck K8-200 |
|
Main motor power |
5.5/7.5 kW |
|
Feed turret |
|
|
X/Z axis torque |
5/7.5 N.m |
|
X/Z axis rapid speed |
6/8 m/min |
|
Turret type |
Electicity |
|
Tool shank size |
20×20 |
|
Turret repeatability |
≤0.004 |
|
Tailstock |
|
|
Tailstock diameter |
60 |
|
Tailstock travel |
100 |
|
Tailstock center taper |
Morse 4# |
|
Others |
|
|
Machine net weight |
1800kg |
|
Machine dimension（L×W×H） |
2200×1160×1620 |
|
Power supply（power/ electric current) |
11kW/20A |
|
Standard configuration |
|
|
Chuck |
Ф200 manual chuck |
|
Tailstock |
Manual tailstock |
|
X axis ball screw |
Domestic（Qishan）FD3210-889-1035 |
|
Z axis ball screw |
Domestic（Qishan）FD2506-407-530 |
|
Electricity turret |
4 position |
|
X、Z axis screw bearing |
Domestic(Derun) |
|
Spindle bearing |
Domestic P5 |
|
Machine casting |
Highquality resin sand casting |
|
Spindle assembly |
Assembly spindle |
|
Oil paint |
Can be customized color |
|
Lubrication |
Domestic |
