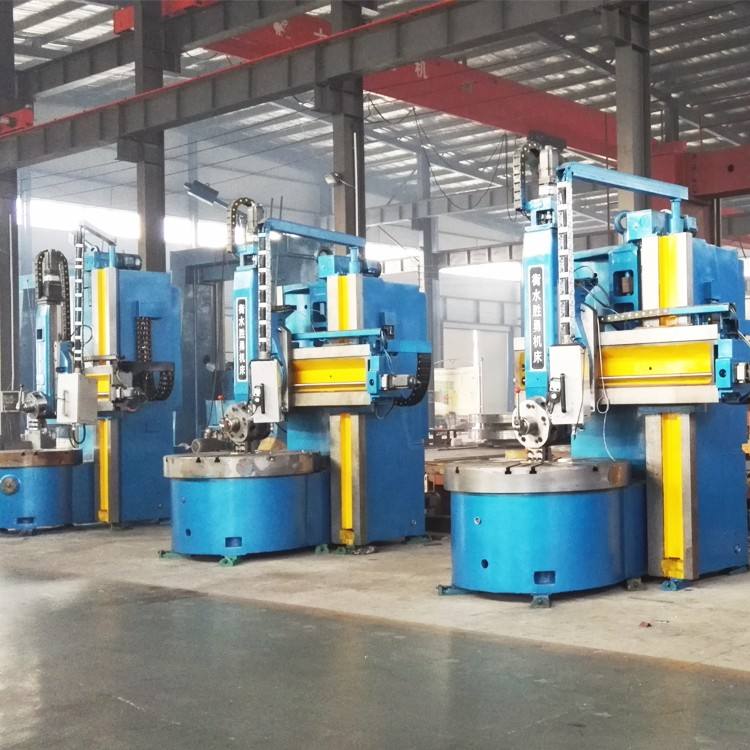

Single Column Vertical Lathe
|
Name |
Unit |
CK518 |
|
Max. turning diameter of vertical tool post |
mm |
800 |
|
Max. turning diameter of workpiece |
mm |
700 |
|
Diameter of worktable |
mm |
800 |
|
The artifact max. height |
mm |
800 |
|
Max. weight of the workpiece |
T |
1.5T |
|
Number of shift stages of work table |
Stepless |
Stepless |
|
Variable speed range of work table |
rpm |
30-260 |
|
Feed level |
Stepless |
Stepless |
|
Feed range |
mm/min |
0.25-90 |
|
Tool post stroke level |
mm |
500 |
|
Tool post stroke Vertical |
mm |
450 |
|
Beam tirp |
mm |
500 |
|
Lateral movement speed of tool post |
mm/min |
2000 |
|
Longitudinal moving speed of tool post |
mm/min |
1500 |
|
Max. turning angle of tool post |
° |
±30° |
|
Tool square size (width×height) |
mm |
30×40 |
|
Main motor power |
kw |
11 |
|
Machine size (length×width×height) |
mm |
1700×2100×2600 |
|
Machine weight |
(about)kg |
5000 |

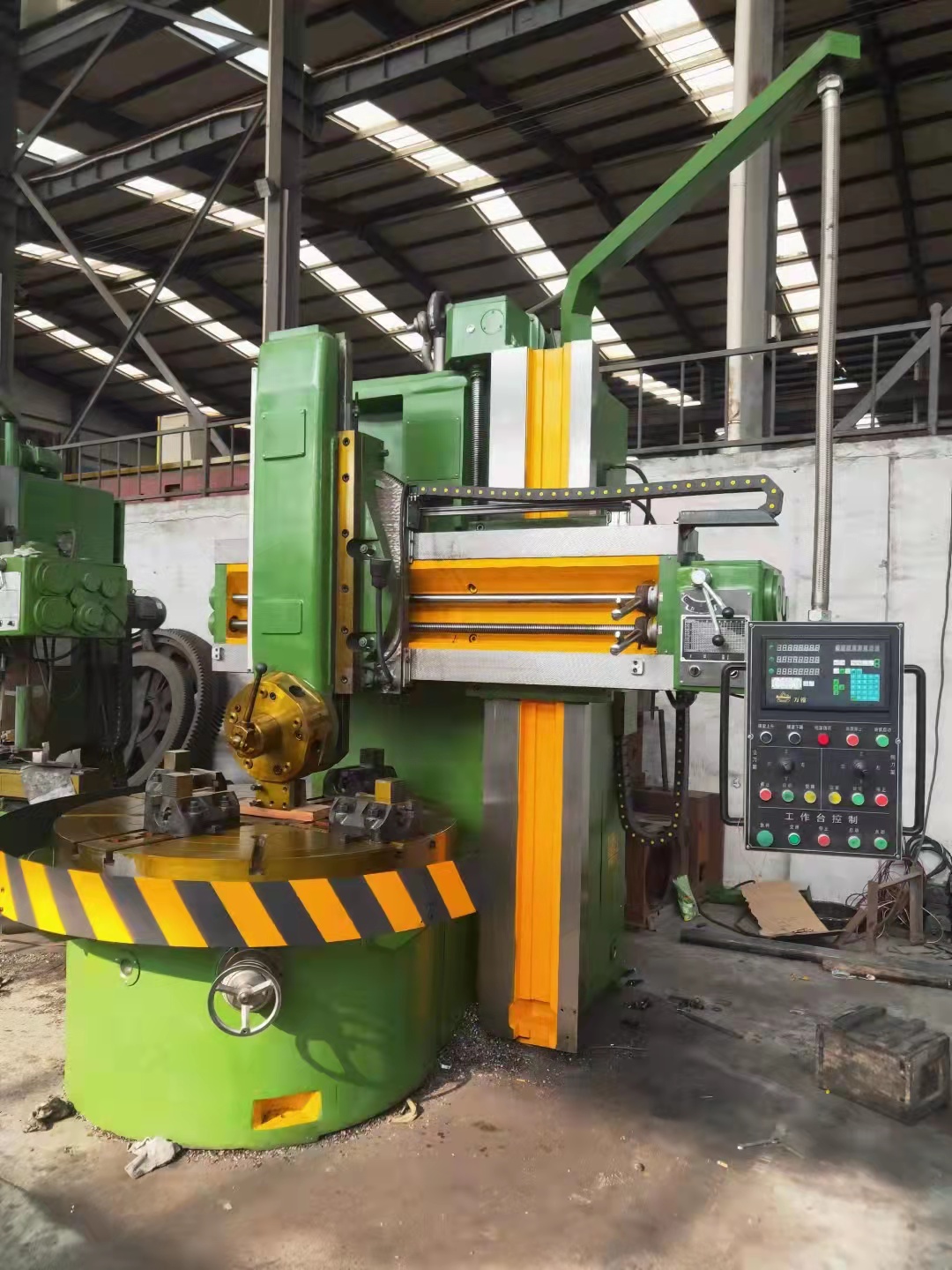

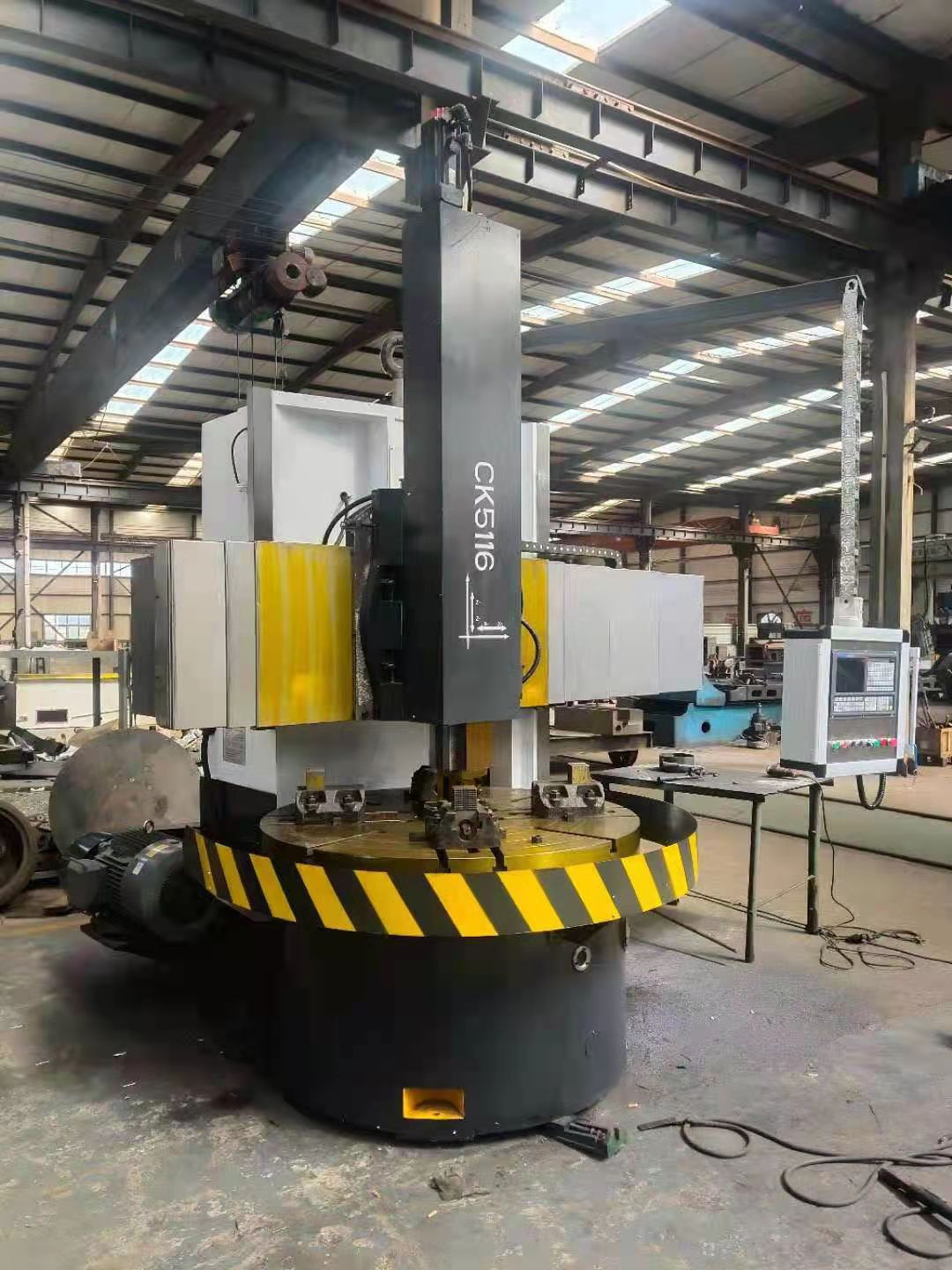

Heavy Duty large vertical turret lathe
Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc. Of coarse and fine turning processing. Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision. Machine tool electric using domestic brand-name products, high reliability. Machine is made of high qualified epc process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance. High cost performance; hanging button station, electric cabinet and bed integrated design; quenched beam, quenched T-shaped ram (five-hole turret); beam closed protection, automatic lubrication of all lubrication parts. With constant line speed turning and threading.
