5 axis RC325 CNC swiss lathe swiss type cnc automatic lathe machine
Product Description
5 axis RC325 CNC swiss lathe swiss type cnc automatic lathe machine

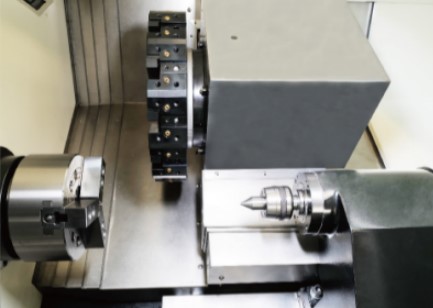

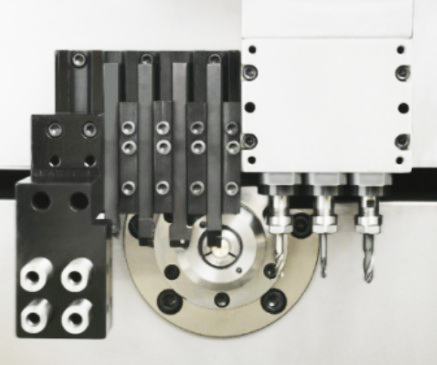

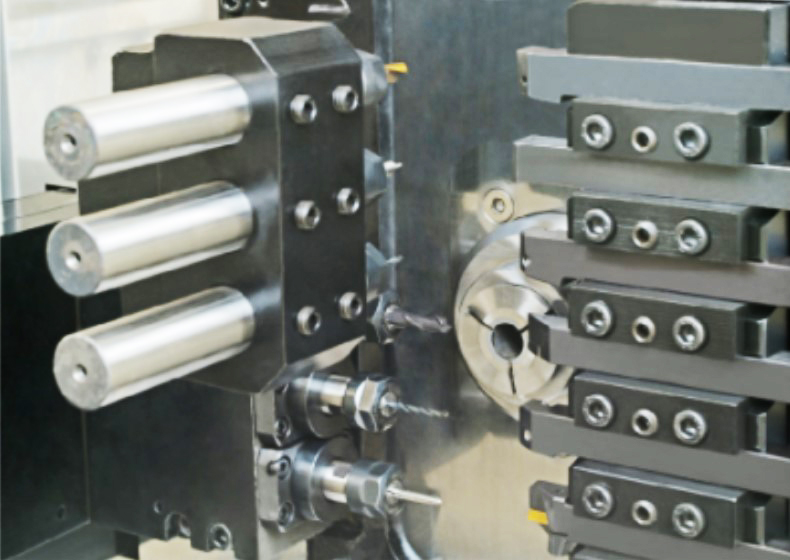

Main structural features 1.8,000rm maximum spindle rotation speed: ultra-high spindle and back spindle rotation speed, which can provide the best processing conditions when slender materials and small diameter tools are used. 2.280mm single clamping processing length: super long single clamping processing length, the workpiece that needs to be changed to be processed before can be completed in one clamping, which shortens the processing time. 3.The diameter of the spindle through hole is Ø32mm. 4.Both the spindle and the back spindle adopt high-precision built-in electric spindles. 5.The dual-channel design significantly improves production efficiency. Equipped with a special tool holder for the back, it can shorten the processing time through the independent processing of the front/back.

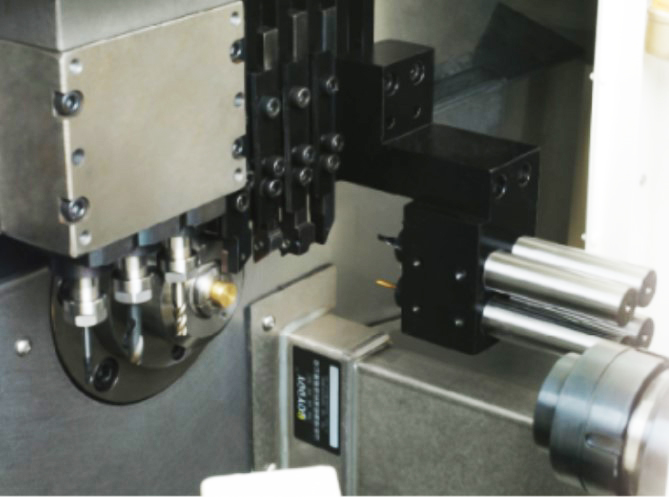

Swiss Type CNC Automatic Lathe Machine with high speed ture is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back. The machine is also equipped with automatic feeder, the feeder part can be installed short feeder and long feeder. Can be achieved continuous feeding of materials under the continuous processing. The equipment is most suitable for aerospace, aerospace, military, automotive, communications, optics, medical equipment and other high-precision, work complex slender
Specification
|
Description |
Unit |
Specifications |
||
|
Processing capacity |
Max maching diameter |
mm |
￠32 |
|
|
Stroke |
mm |
280 |
||
|
Main Spindle RPM |
rpm |
8000 |
||
|
Sub Spindle RPM |
rpm |
8000 |
||
|
Cross Driven Tools |
rpm |
5000 |
||
|
Main/Sub Spindle CS axis indexing minimum unit |
° |
1/1000（0.001） |
||
|
Rapid Traverse Rate |
X1 axis |
m/min |
24 |
|
|
Y/Z1/X2/Z2 axis |
m/min |
32 |
||
|
Number of tools |
O.D Tools |
ea |
6 |
|
|
Front Work Tools |
ea |
5 |
||
|
Cross Driven Tools |
ea |
4 |
||
|
Back Work Tools |
ea |
4 |
||
|
O.D Tools specification |
mm |
□16x16 |
||
|
Front Work Tools diameter |
mm |
￠20 |
||
|
Power Tool Chuck Specifications |
mm |
ER16 |
||
|
Motors |
Spindle motor |
kw |
5.5/7.5 |
|
|
Sub Spindle motor |
kw |
1.5/2.2 |
||
|
Servo axis motor |
kw |
1.0 |
||
|
Cross Driven Tools motor |
kw |
0.55/1.1 |
||
|
Lubrication pump motor |
w |
100 |
||
|
Coolant motor |
kw |
0.9 |
||
|
Other |
Coolant tank capacity |
L |
200 |
|
|
Lubrication tank capacity |
L |
2 |
||
|
Height from floor to spindle center |
mm |
1000 |
||
|
Floor space |
Length |
mm |
2581 |
|
|
Weight |
mm |
1563 |
||
|
Height |
mm |
1791 |
||
|
Mass of machine |
kg |
3800 |
||
|
CNC control unit |
High-spec |
FANUC oi TF PLUS |
||
