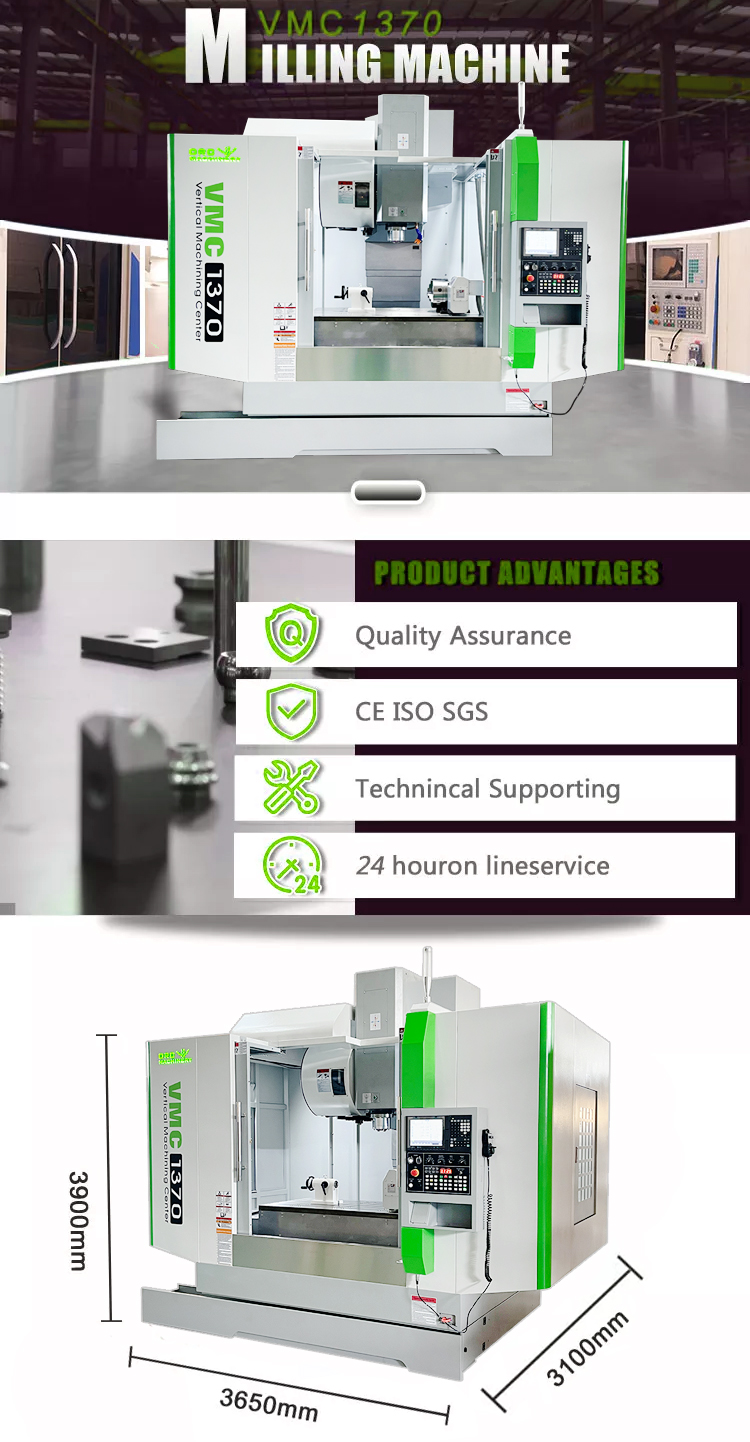

VMC1370 Fanuc 5 axis Large Vertical CNC Machining Center

5-axis Cnc Machine High Precision VMC1370 Fanuc 5 axis Large Vertical CNC Machining Center
Large Cnc Machine Center Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping,boring ,etc.

Inquire Now

None

Share

CONTACT US

Dalian R&C Machinery Co., Ltd.

Product Description


               3 axis 4 axis 5 axis CNC Large vertical machining center for metal

Large Cnc Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping,boring ,etc.
00:0000:29
Model
VMC1370 (GSK25i system)
VMC1580(GSK25i system)
Travel parameters of 3 axis


X /Y/Z axis travel
1300/700/700mm
1500/800/700mm
Spindle nose to table surface
110-810mm
130-860mm
X/Y/Z axis AC servo motor
torque N.m 22/22/30
torque N.m 30/30/38
Spindle center to column surface
750mm
810mm
Worktable


table size
1400×700mm
1800×800mm
Max.loading
1000Kg
1500kg
T Shot
5-22×140mm
5-22×135mm
Feeding parameters


X/Y/Z axis rapid feed
24/24/20m/min
20/20/15m/min
Cutting feed
1-10m/min
1-6m/min
Spindle parameters


Main shaft connection
Belt
Belt
Spindle taper
BT40-150
BT50-155
Range of spindle speed
8000rpm(Optional:10000 )
8000rpm(Optional:10000 )
Spindle motor
11kW
15KW
ATC paremeters


ATC capacity
24qty
24qty
Max.tool dia
Φ80/Φ150mm
Φ127/Φ200
Max.tool weight
8kg
18kg
Precision


Position accuracy(JIS standard)
±0.008/300mm
±0.008/300mm
Repeat positioning accuracy(JIS standard)
±0.005mm
±0.005mm
Shape and weight


Dimensions
3700×2750×2800mm
4260×3250×2940
Weight
8200kg
13000kg

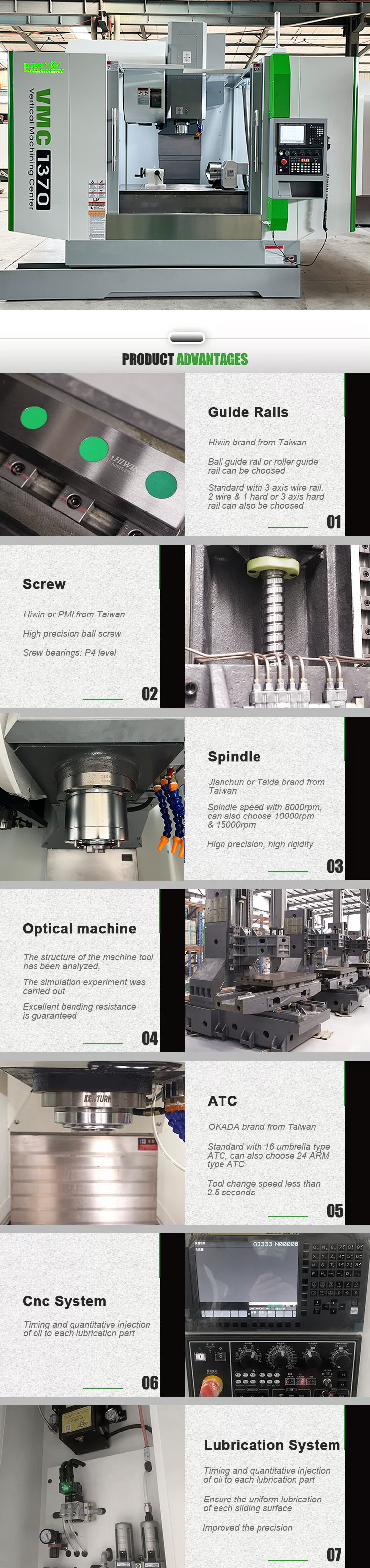

Details Display
